타이조우 카이오드 기계류 주식회사
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | KAD |
| 인증: | CE |
| 모델 번호: | CDD15 |
| 최소 주문 수량: | 1개 |
| 가격: | ＄1200-＄1400 /unit |
| 포장 세부 사항: | 철 팔렛+플라스틱 필름 |
| 배달 시간: | 영업일 기준 10일 |
| 지불 조건: | L/C,D/A,D/P,T/T,웨스턴 유니온 |
| 공급 능력: | 500Units/month |
| 색상: | 빨간색/맞춤형 | 제품명: | 전동지게차 |
|---|---|---|---|
| 부하 중심: | 500mm | 부하 용량: | 1000-1500kg |
| 로드 높이: | 3000mm | 특징: | 고효율 |
| 배터리 용량: | 48V/32AH | ||
| 강조하다: | 2 ton electric pallet stacker,warehouse grade electric stacker,dual lifting system pallet stacker |
||

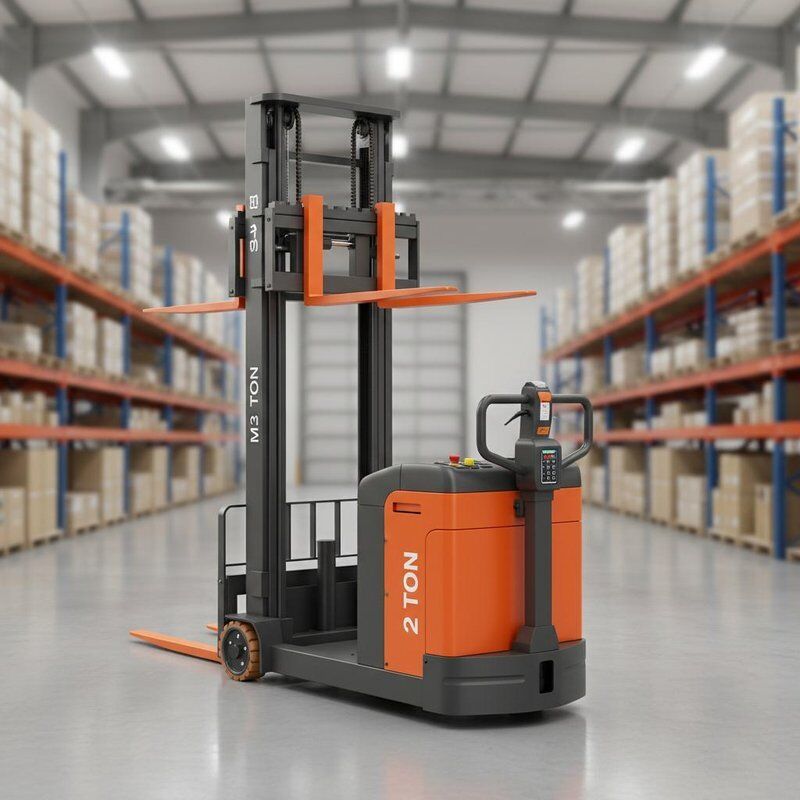

Boost warehouse efficiency with our Full Electric Initial Lift Stacker, designed for smooth and effortless pallet handling. Featuring a 3-meter lifting height and dual load capacity options (1.5T & 2T), this electric stacker ensures reliable performance in logistics, manufacturing, and storage operations. If you have any questions about this Full Electric Stacker, please contact us. Our team is available 24 hours to assist you.Warehouse Grade Full Electric Stacker 2 Ton Capacity 3 Meter Lift With Dual Lifting System
Key Advantages
Technical Specifications
Specification
Unit
Value
Power source
Battery
Rated load
kg
1500/2000
Load center
mm
500
Operation way
Standing operation, electric lifting, electric gripper, manual moving
Turning radius
mm
1500
Aisle width
mm
2560/2495
Length
mm
2040
Width
mm
830
Height
mm
2100
Mast
Two-Stage Mast
Max lifting height
mm
3000
Min height of forks
mm
200
Running speed (load/unload)
km/h
4.0/5.0
Hoisting speed (load/unload)
mm/s
0.08/0.135
Descent speed (load/unload)
mm/s
0.105/0.097
Climbing capability
%
5./10.
Braking mode
Electromagnetism
Tyres, material
Polyurethane
Load wheel dimensions
mm
80 × 70, 2pcs
Battery
v/ah
48/32
Weight
kg
620/750
