| 로드 용량: | 1000~3500kg | 로드 높이: | 3000mm-6000mm |
|---|---|---|---|
| 배터리: | 12V/80Ah | 유형: | 디젤 지게차 |
| 색상: | 고객은 요구했습니다 | 특징: | 쉬운 조종 안전성 편익 |
| 어플리케이션: | 산업 | 인증: | CE |
| 전원 유형: | 디젤 파워 | ||
| 강조하다: | fuel efficient diesel forklift,diesel forklift with advanced injection,battery operated forklift with warranty |
||

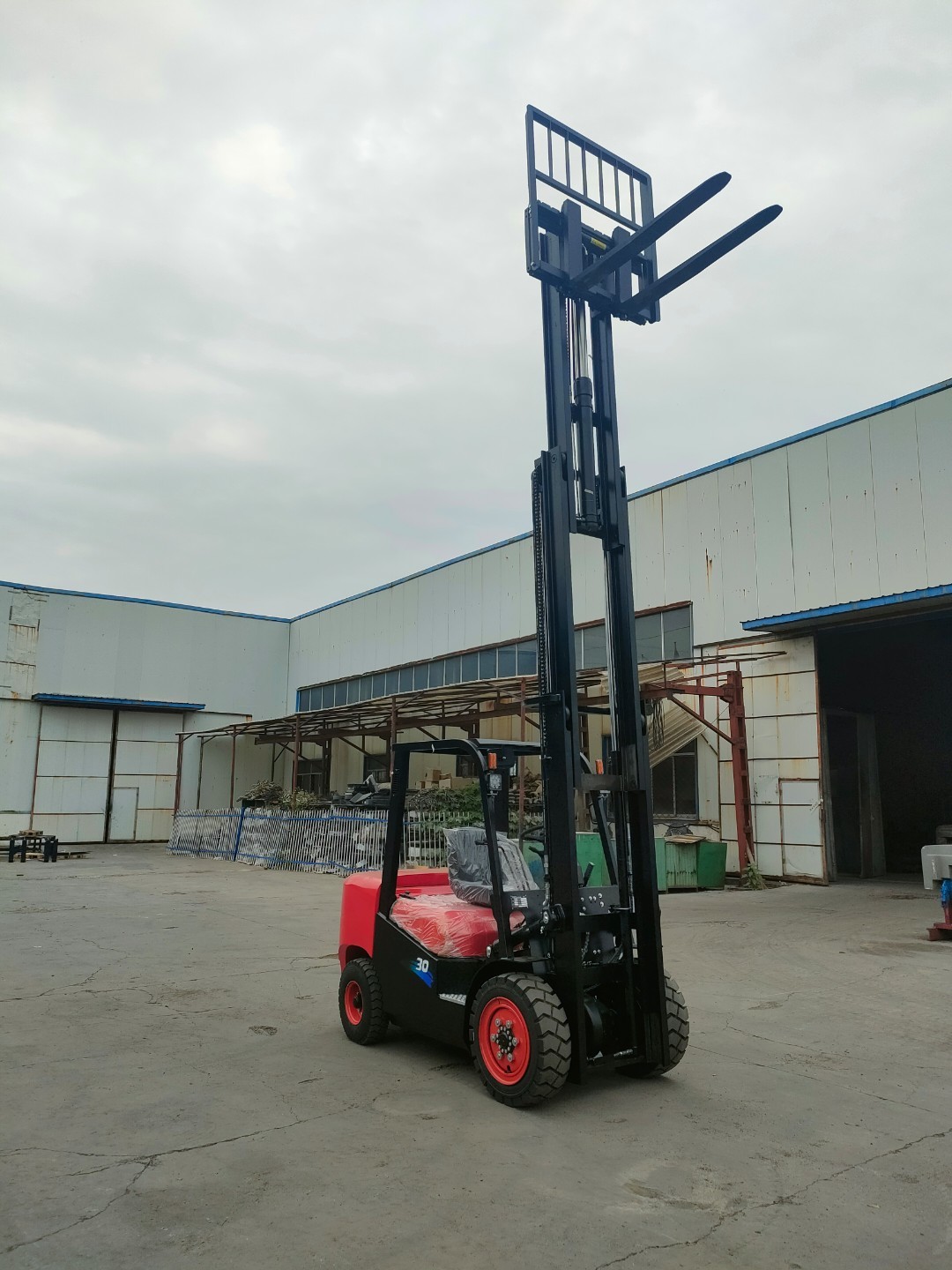

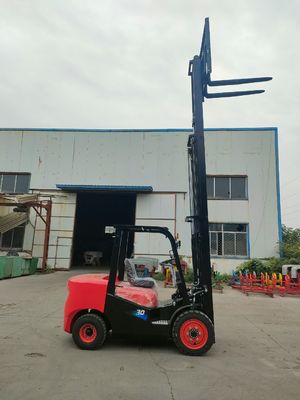

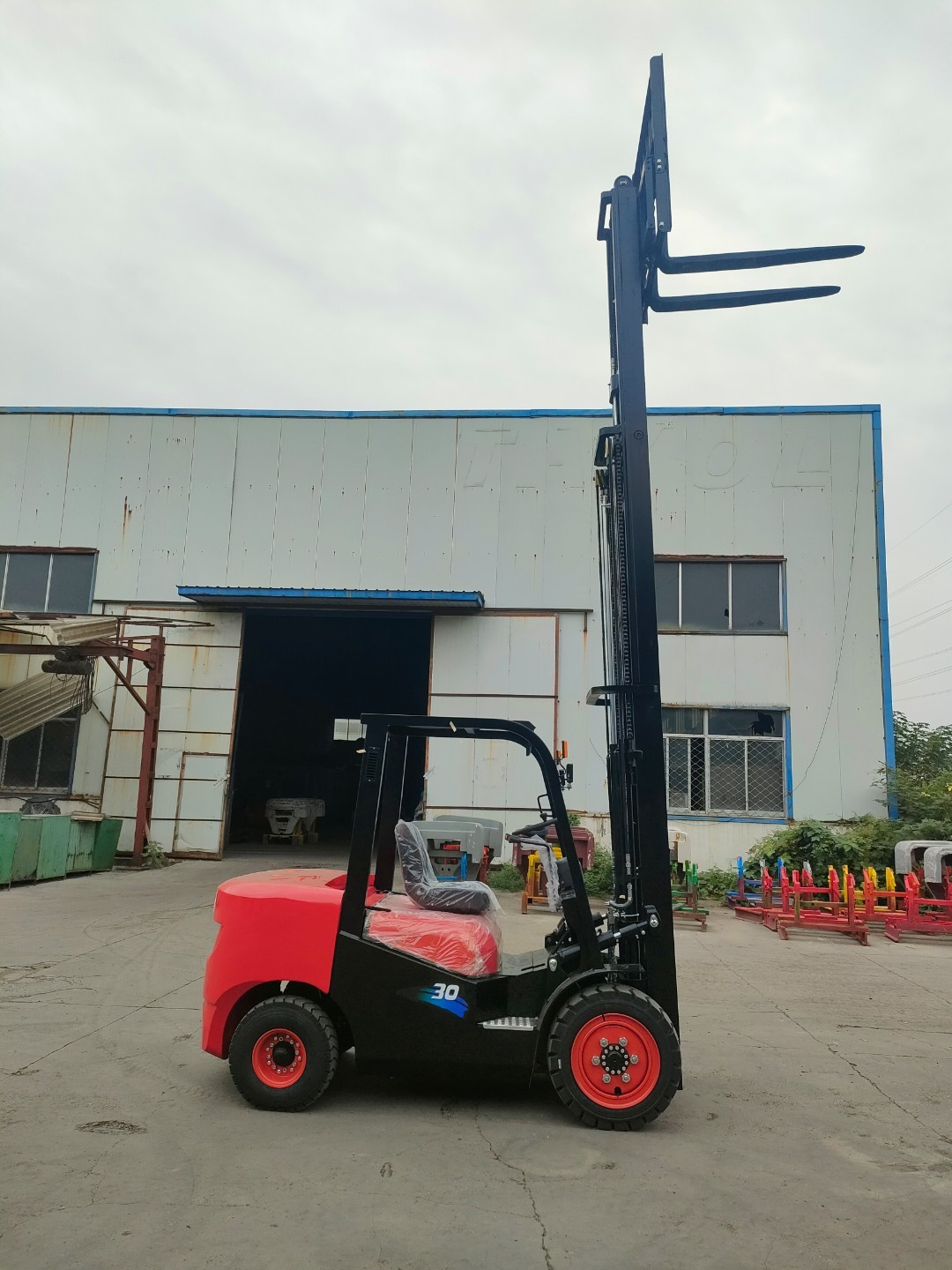

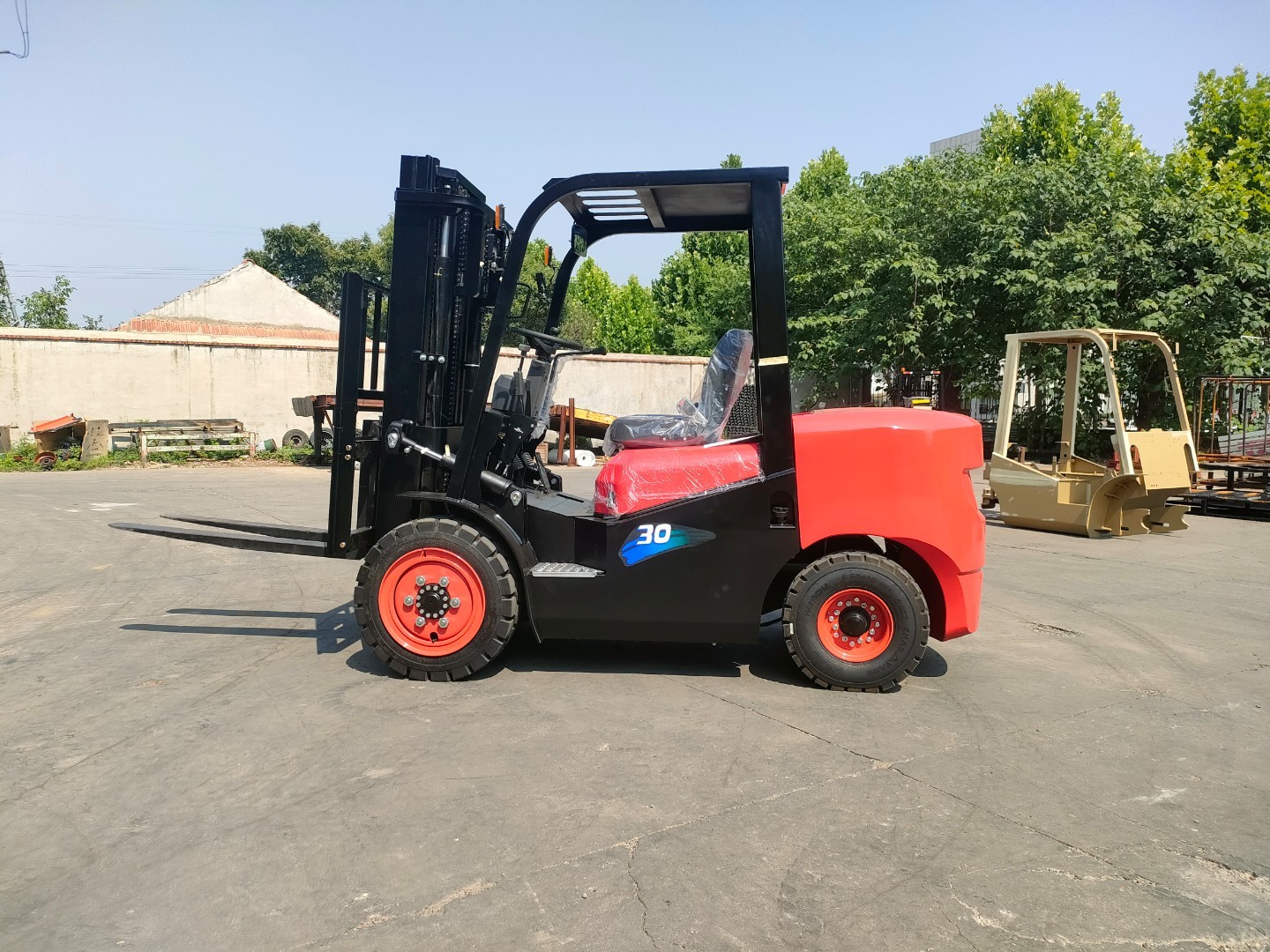

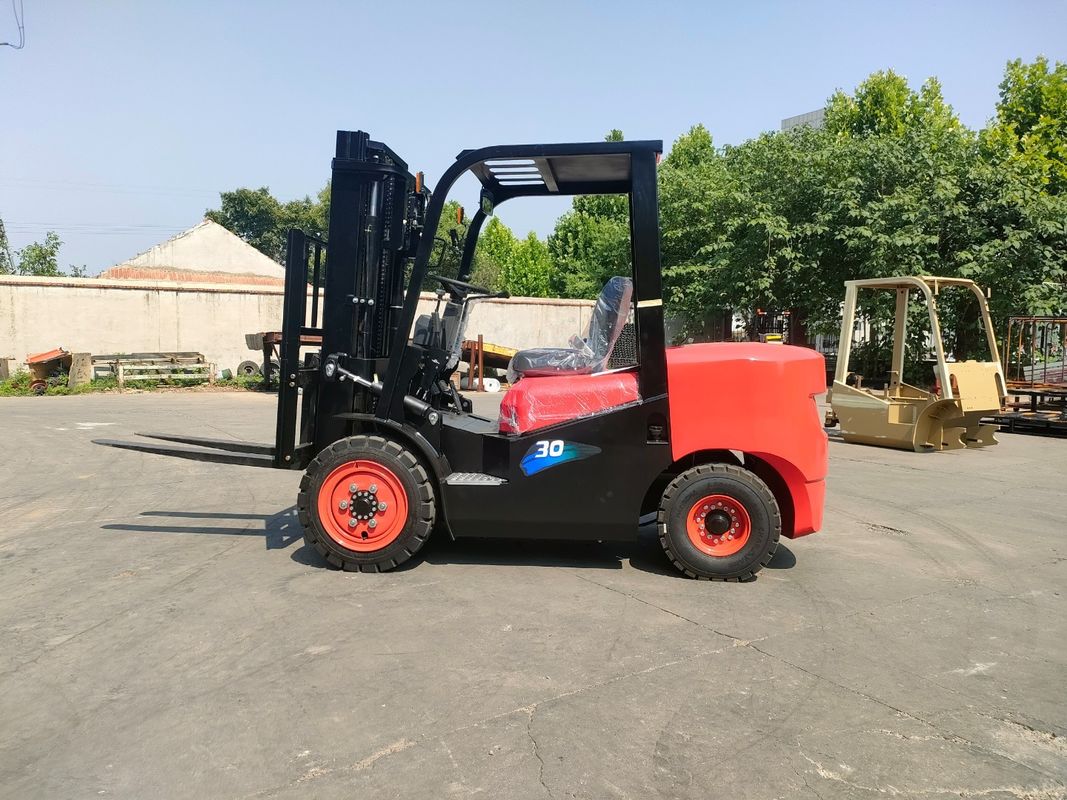

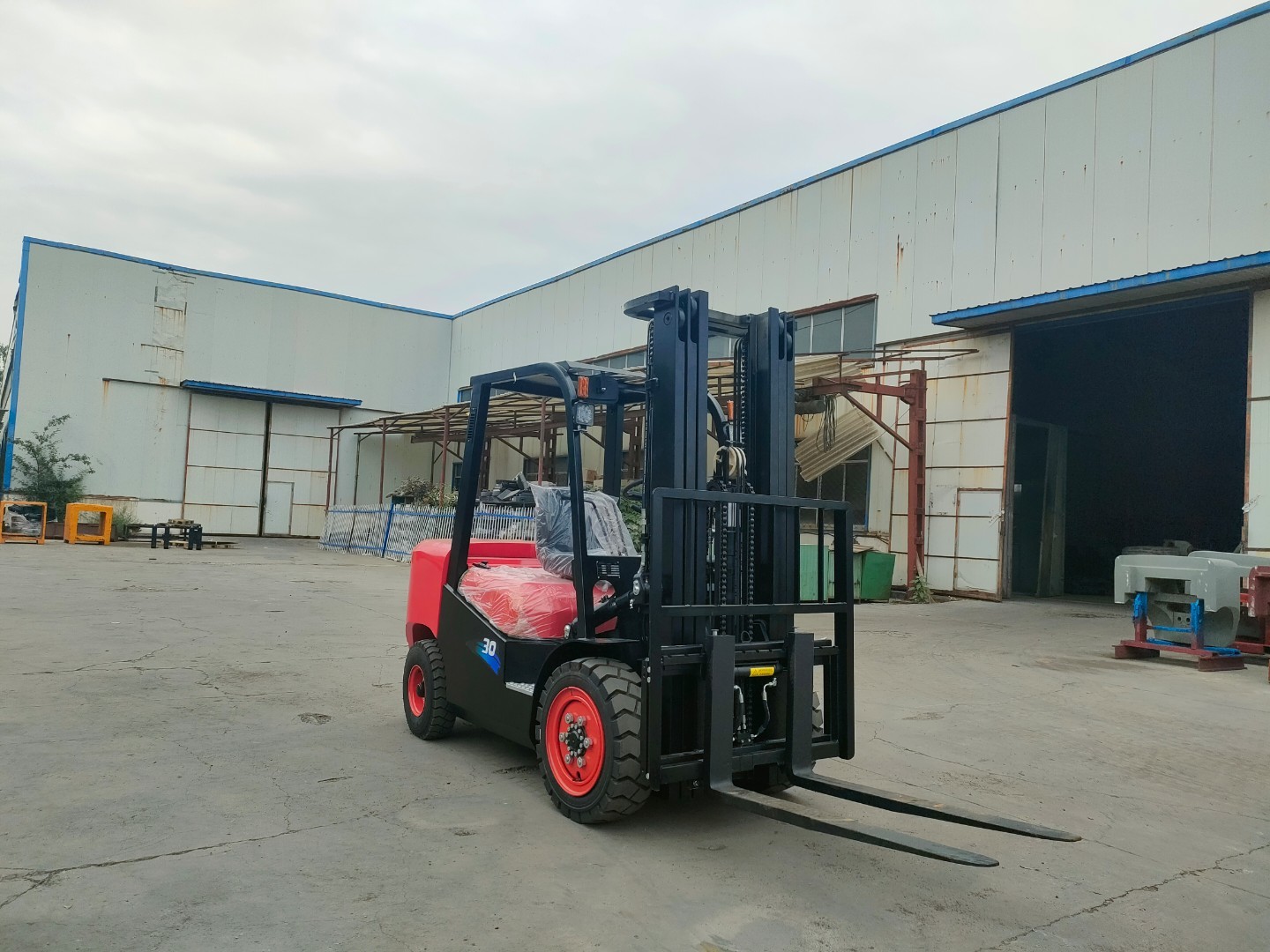

Fuel Efficient Diesel Forklift Advanced Injection Technology for Lower Operating Costs
From freezing cold stores to scorching steel mills, this rugged diesel forklift is customized to perform reliably where standard equipment fails.
Cold Store Package: Available with special low-temperature steel, Arctic-grade hydraulic oil and seals, and an enhanced cold-start system for flawless operation in environments as low as -30°C.
High-Temp & Dust Protection Package: Features an upgraded cooling system, heat shields for critical components, and enhanced air filtration to prevent overheating and abrasion in demanding settings like foundries or cement plants.
Explosion-Proof Certification: (可选型号) Designed and certified according to ATEX or similar standards for safe operation in potentially explosive atmospheres.
Customizable Configurations: We offer a range of specialized attachments and configurations, from high-capacity radiators to special paint coatings, tailored to your specific operational hazard.
|
Model
|
|
CPC30/CPCD30
|
|
Rated Capacity
|
kg
|
3000
|
|
Load Center
|
mm
|
500
|
|
Power Type
|
|
Diesel
|
|
Max, Lifting Speed (No-Load / Full-Load)
|
mm/s
|
450 / 440
|
|
Max. Driving Speed (Full-Load /No-Load)
|
km/h
|
18 / 20
|
|
Max. Towing Capacity(Full-Load/No-Load
|
kN
|
15.5 / 10.5
|
|
Gradeability(Full-Load/No-Load)
|
%
|
15 / 20
|
|
Lifting Height
|
mm
|
3000
|
|
Free Lift Height
|
mm
|
80
|
|
Mast Tilting Angle (Forward-Backward)
|
(°)
|
6 / 12
|
|
Min.Turning Radius
|
mm
|
2530
|
|
Min.Right Angle Aisle Width
|
mm
|
2050
|
|
Min. Ground Clearance
|
mm
|
135
|
|
Overall Length (including Fork)
|
mm
|
4170
|
|
Overall Width
|
mm
|
1230
|
|
Overall Height (Mast Lowered)
|
mm
|
2110
|
|
Overall Height (Mast Extended)
|
mm
|
4270
|
|
Overall Height to Overhead
|
mm
|
2105
|
|
Front Overhang
|
mm
|
465
|
|
Wheelbase
|
mm
|
1760
|
|
Front Tread
|
mm
|
1000
|
|
Rear Tread
|
mm
|
970
|
|
Front Wheel
|
mm
|
28*9-15
|
|
Rear Wheel
|
mm
|
6.50-10
|
|
Fork Width
|
mm
|
122
|
|
Fork Thickness
|
mm
|
45
|
|
Backrest Height
|
mm
|
1225
|
|
Fork Length
|
mm
|
1220
|
|
Engine Model
|
|
C490BPG
|
|
Rate Power
|
KW
|
40
|
|
Rotate Speed at Rate Power
|
rpm
|
2650
|
|
Max. Torque
|
Nm
|
162
|
|
Rotation Speed at Max. Torque
|
rpm
|
1800 ~ 1900
|
|
Type of Power Shift
|
|
Mechanical / Hydraulic
|
|
Curb Weight
|
kg
|
4100
|
![]()
Q1. What is your terms of packing? A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated
Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship? 1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
