| 로드 용량: | 1000~3500kg | 로드 높이: | 3000mm-6000mm |
|---|---|---|---|
| 배터리: | 12V/80Ah | 유형: | 디젤 지게차 |
| 색상: | 고객은 요구했습니다 | 특징: | 쉬운 조종 안전성 편익 |
| 어플리케이션: | 산업 | 인증: | CE |
| 전원 유형: | 디젤 파워 | ||
| 강조하다: | 4 ton diesel forklift,large diesel forklift,heavy-duty diesel forklift |
||

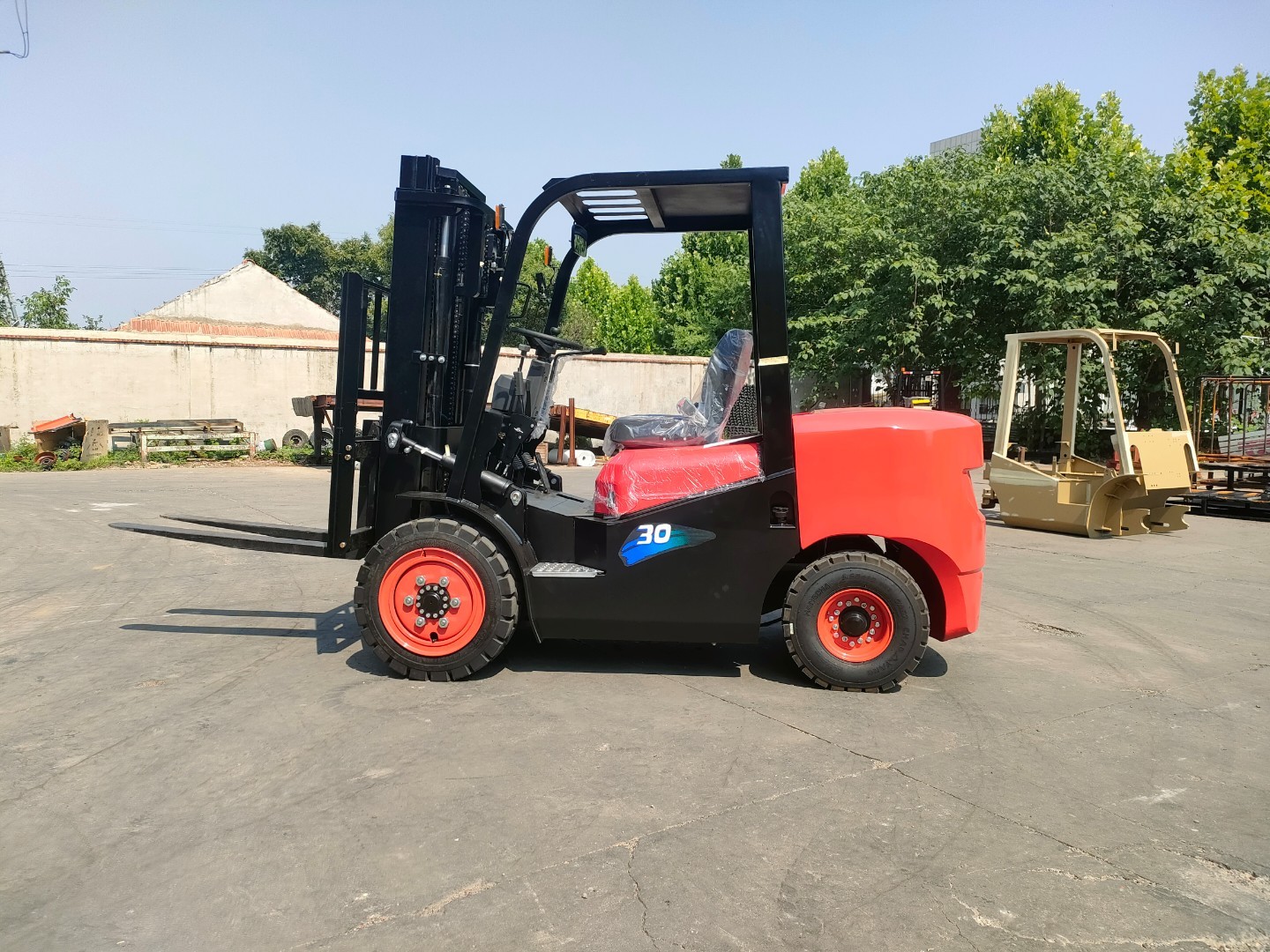

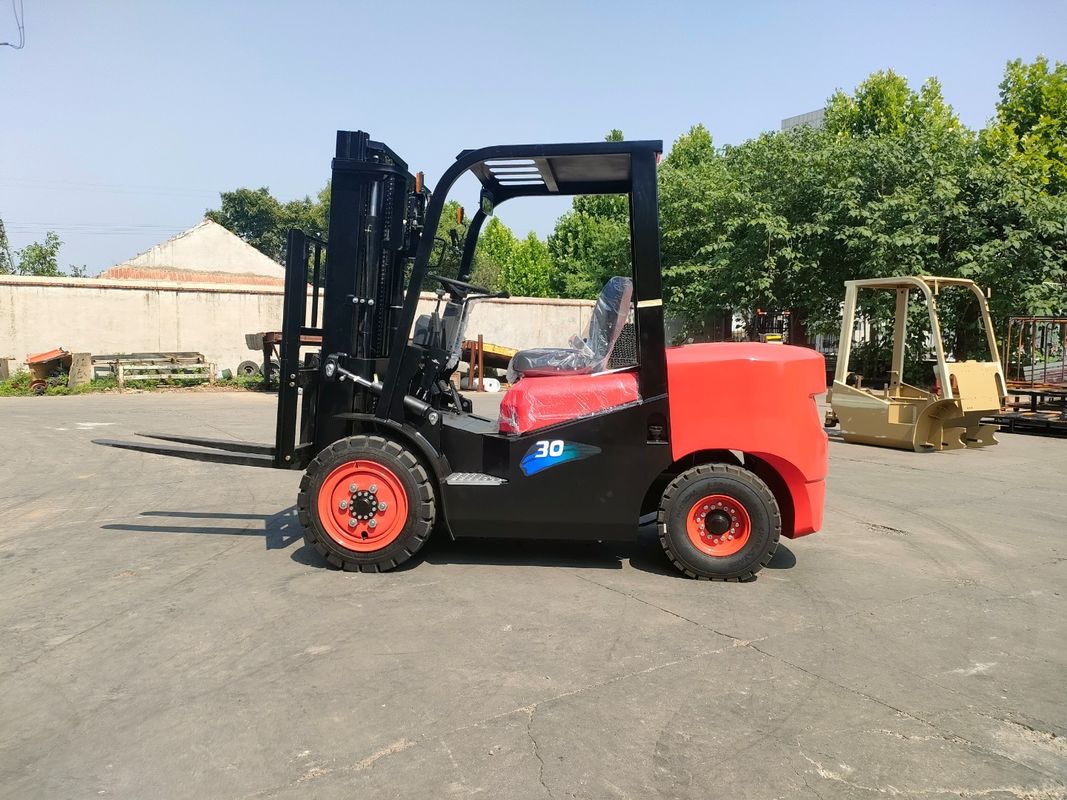

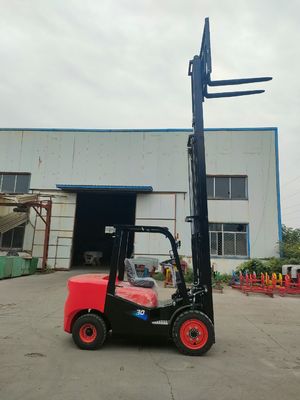

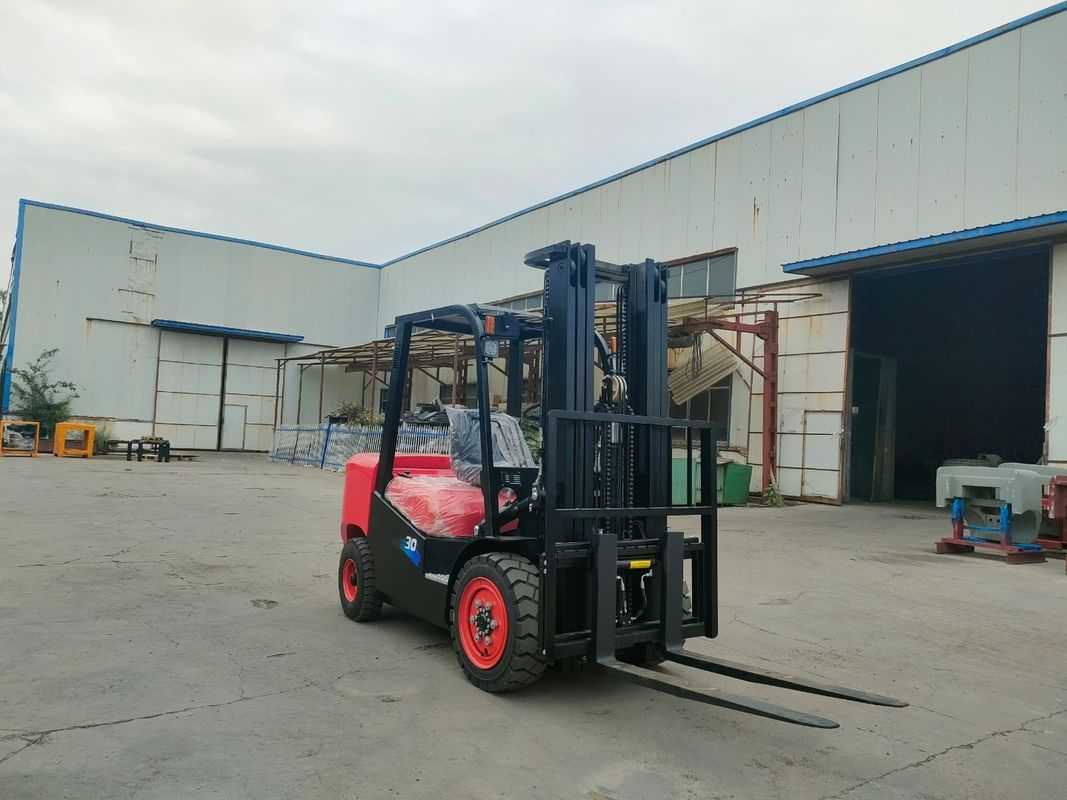

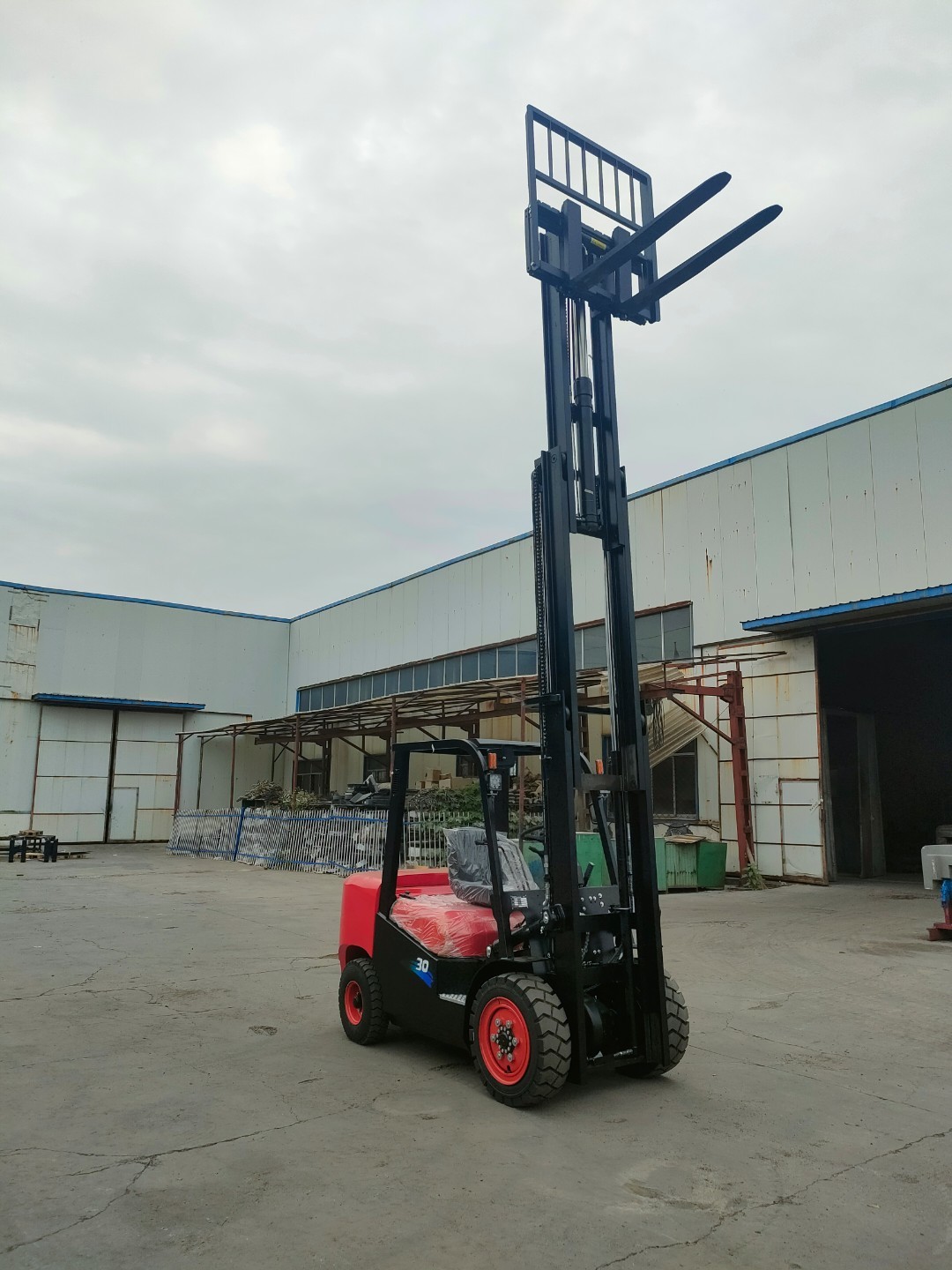

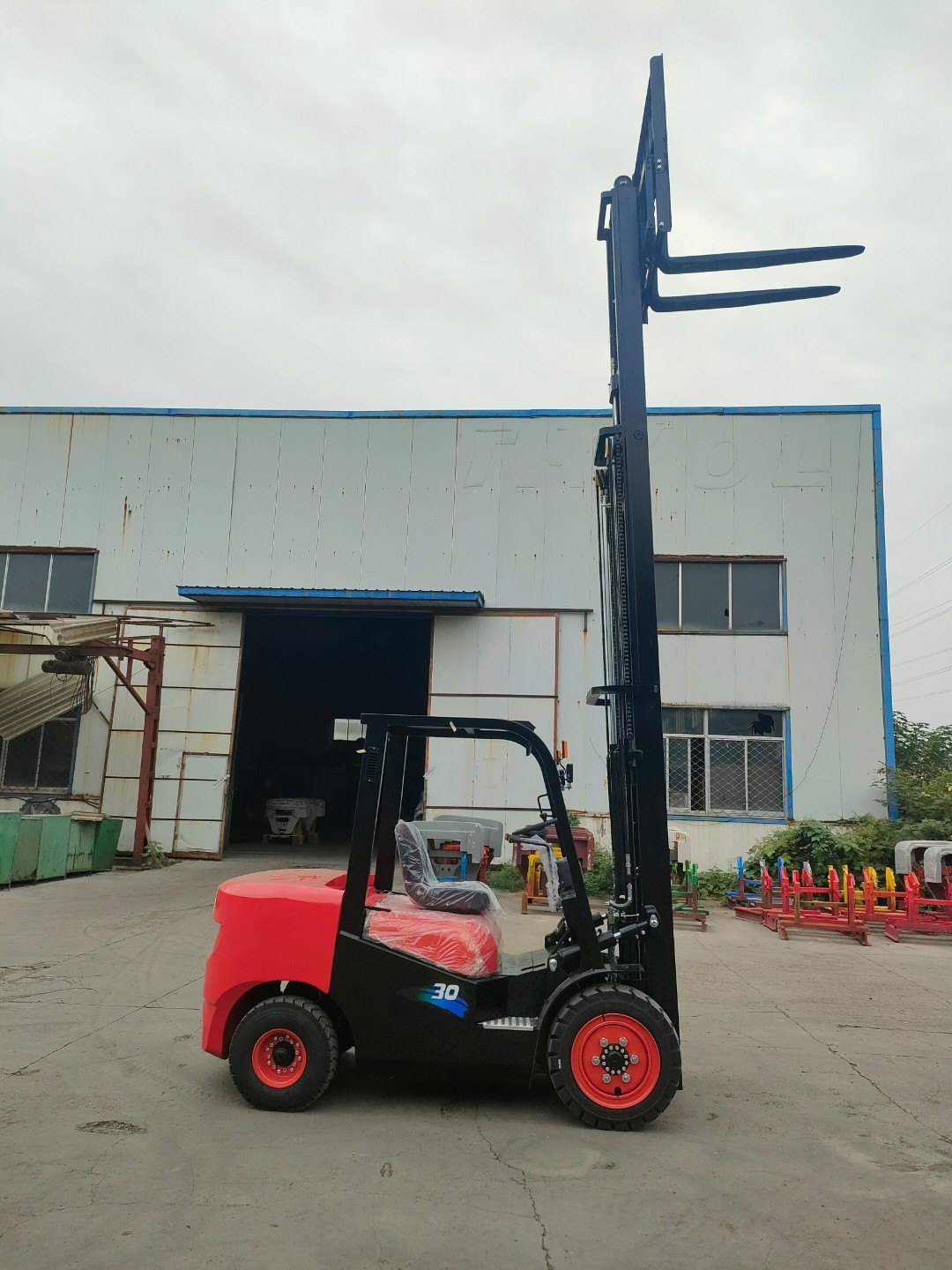

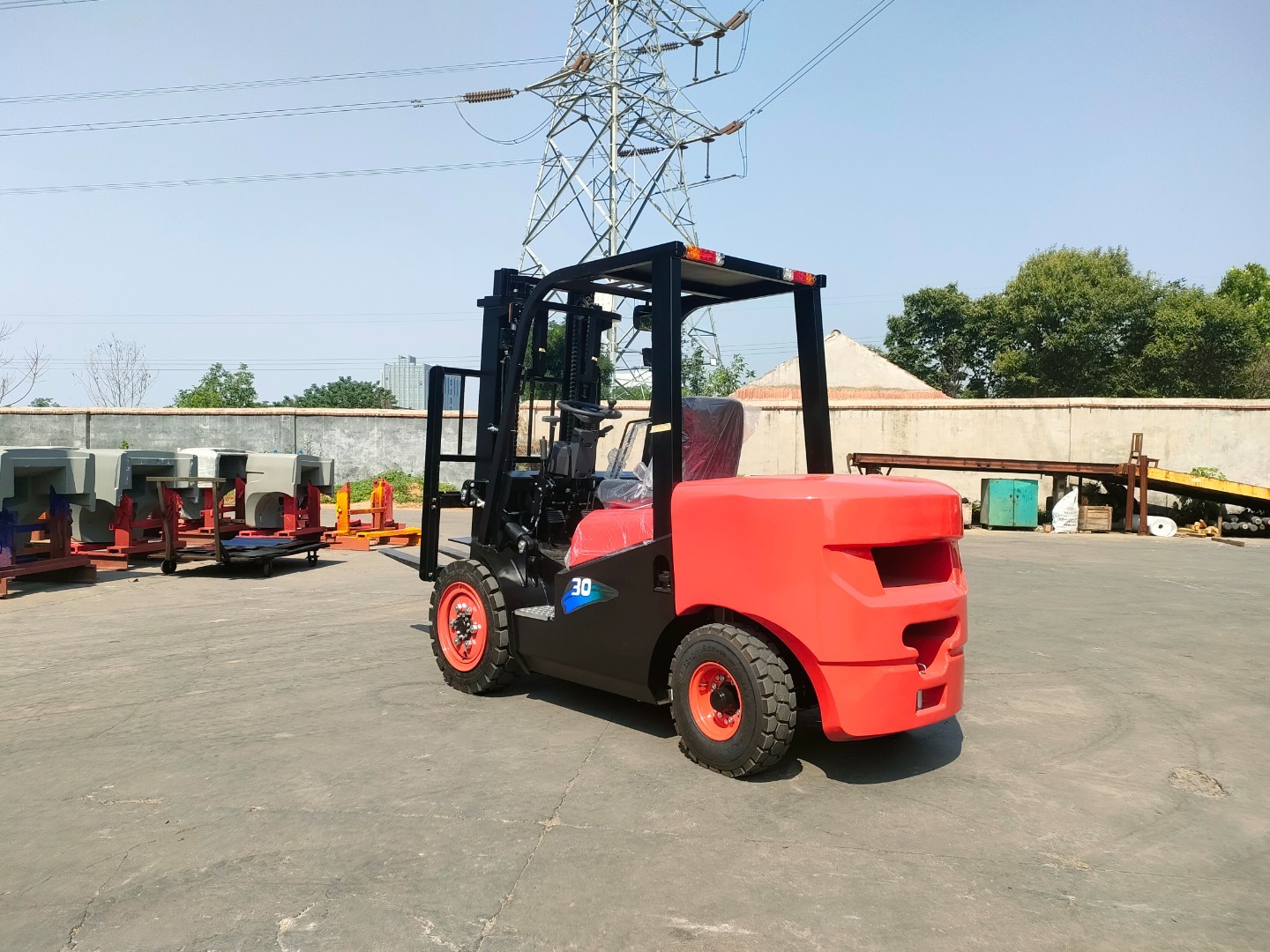

4 Ton Large Diesel Forklift Designed for Demanding Applications
Maximize your return on investment with a diesel forklift designed for minimal downtime and effortless servicing. Every component is engineered for quick access and extended service intervals.
Quick-Access Engineering: The engine compartment opens wide, with modular components and quick-disconnect couplings. Filters and routine service points are positioned for easy reach, reducing maintenance time by over 30%.
Extended Service Life: Critical systems like the reinforced mast and drive axle are built with premium materials and sealed against contaminants, dramatically increasing their lifespan and reducing the frequency of costly repairs.
Clear Diagnostic Interface: A standard digital dashboard provides real-time operational data and fault code alerts, enabling proactive maintenance and faster troubleshooting.
Global Parts Support: We ensure the availability of a common parts kit and global supply chain support, guaranteeing that your operations are never halted waiting for a component.
Unmatched Off-Road Capability: Equipped with large, deep-tread off-road tires and a high-clearance chassis to ensure superior traction and stability on any surface.
All-Weather Durability: The fully sealed, corrosion-resistant chassis and critical component guards protect against dust, mud, and moisture, guaranteeing longevity in harsh conditions.
Exceptional Overload & Grip Performance: Beyond a strong overload capacity, it features a limited-slip differential for enhanced wheel grip, preventing sinking and slippage on soft ground.
All-Terrain Versatility: Multiple mast heights and specialized tire options (e.g., snow tires) are available, making it the ideal solution for lumber yards, construction sites, and agricultural work.
|
Model
|
|
CPC30/CPCD30
|
|
Rated Capacity
|
kg
|
3000
|
|
Load Center
|
mm
|
500
|
|
Power Type
|
|
Diesel
|
|
Max, Lifting Speed (No-Load / Full-Load)
|
mm/s
|
450 / 440
|
|
Max. Driving Speed (Full-Load /No-Load)
|
km/h
|
18 / 20
|
|
Max. Towing Capacity(Full-Load/No-Load
|
kN
|
15.5 / 10.5
|
|
Gradeability(Full-Load/No-Load)
|
%
|
15 / 20
|
|
Lifting Height
|
mm
|
3000
|
|
Free Lift Height
|
mm
|
80
|
|
Mast Tilting Angle (Forward-Backward)
|
(°)
|
6 / 12
|
|
Min.Turning Radius
|
mm
|
2530
|
|
Min.Right Angle Aisle Width
|
mm
|
2050
|
|
Min. Ground Clearance
|
mm
|
135
|
|
Overall Length (including Fork)
|
mm
|
4170
|
|
Overall Width
|
mm
|
1230
|
|
Overall Height (Mast Lowered)
|
mm
|
2110
|
|
Overall Height (Mast Extended)
|
mm
|
4270
|
|
Overall Height to Overhead
|
mm
|
2105
|
|
Front Overhang
|
mm
|
465
|
|
Wheelbase
|
mm
|
1760
|
|
Front Tread
|
mm
|
1000
|
|
Rear Tread
|
mm
|
970
|
|
Front Wheel
|
mm
|
28*9-15
|
|
Rear Wheel
|
mm
|
6.50-10
|
|
Fork Width
|
mm
|
122
|
|
Fork Thickness
|
mm
|
45
|
|
Backrest Height
|
mm
|
1225
|
|
Fork Length
|
mm
|
1220
|
|
Engine Model
|
|
C490BPG
|
|
Rate Power
|
KW
|
40
|
|
Rotate Speed at Rate Power
|
rpm
|
2650
|
|
Max. Torque
|
Nm
|
162
|
|
Rotation Speed at Max. Torque
|
rpm
|
1800 ~ 1900
|
|
Type of Power Shift
|
|
Mechanical / Hydraulic
|
|
Curb Weight
|
kg
|
4100
|
![]()
