강조하다: | 600kg electric glass suction cup,800kg robot lift with CE,electric pallet stacker for glass |
---|

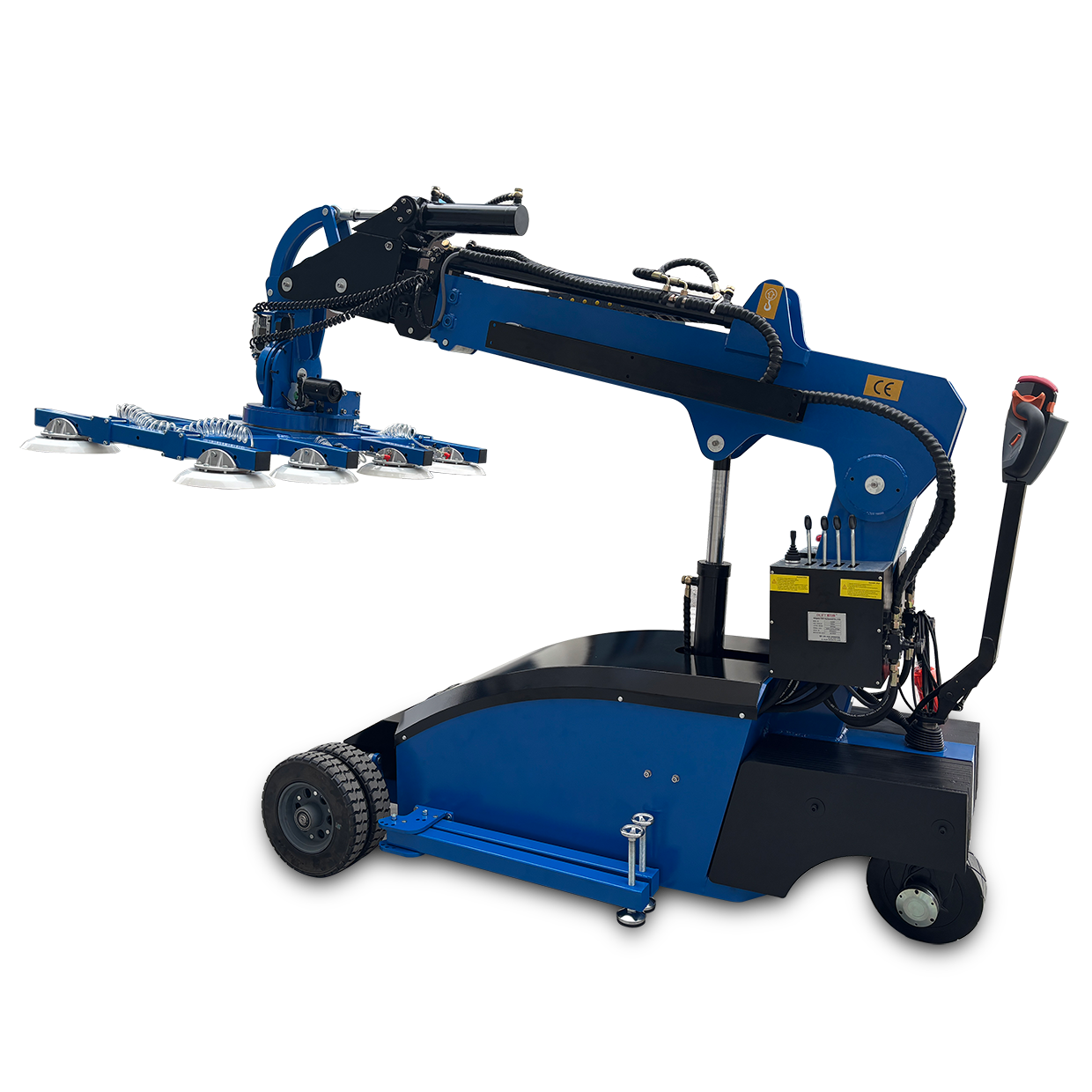

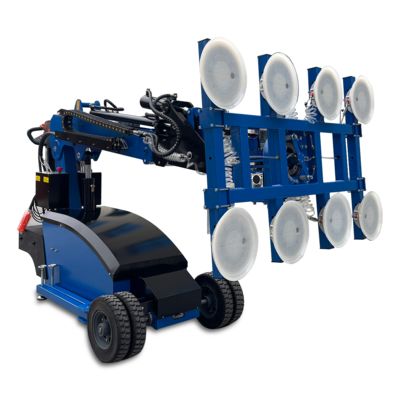

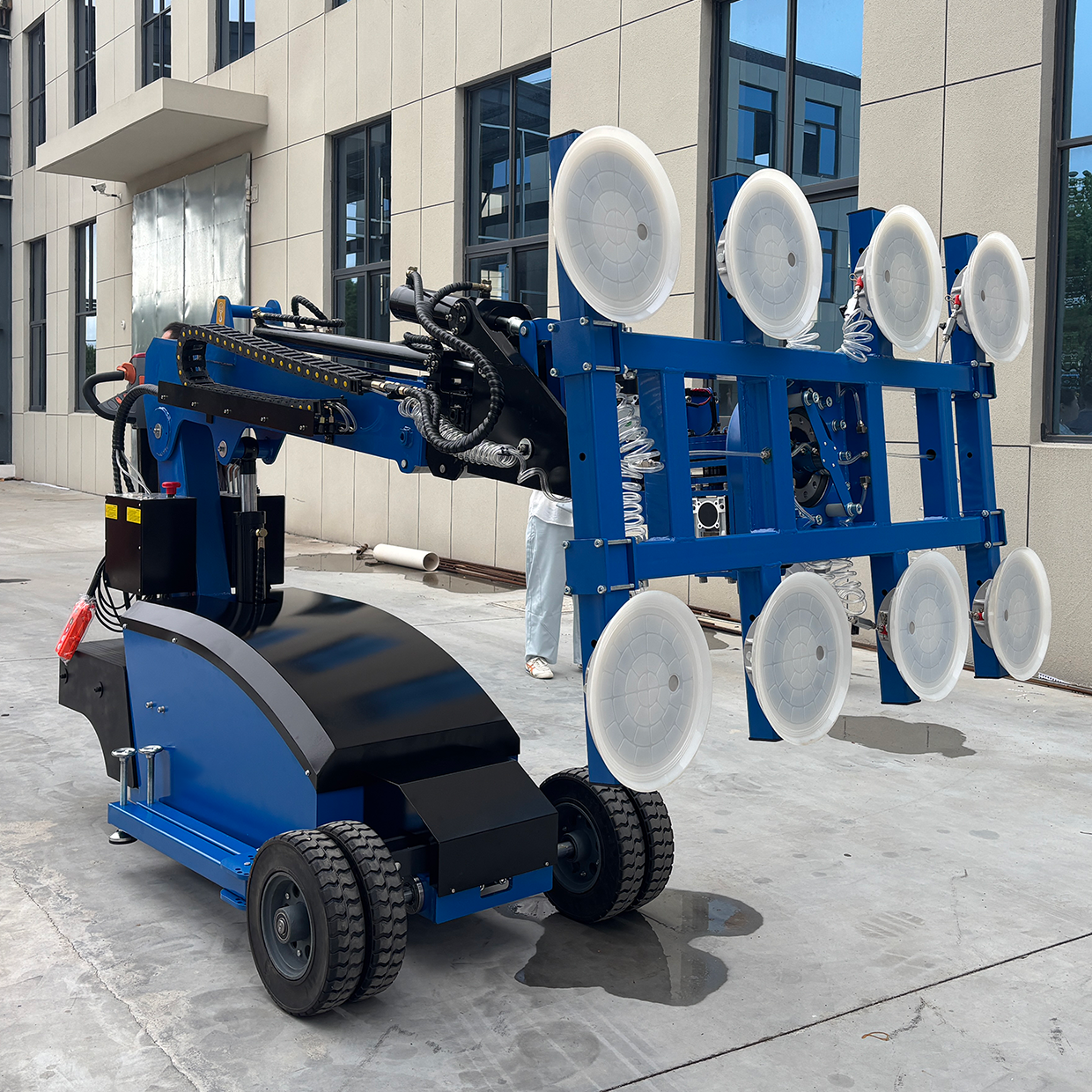

Our glass robotic arm is an ideal way to make the production process and transportation easier. Whether you want to transport steel, glass components, stones, or wood, you will find the perfect solution here. To ensure safety, equipped with vacuum alarm, charging protection, automatic braking, emergency stop, counterweight, support legs, etc. Also known as glass lifter, vacuum glass lifter robot, robot glazing tool, electric suction cup car, etc.
Click here to get latest price
If you have any questions for this Semi electric heavy-duty circular clamp ,please contact me as below,i will stand by 24 hours.Thanks
Model
|
/
|
GL600/800
|
Driving mode
|
/
|
Front Axle Drive
|
Max.Load
|
kg
|
600 /800
|

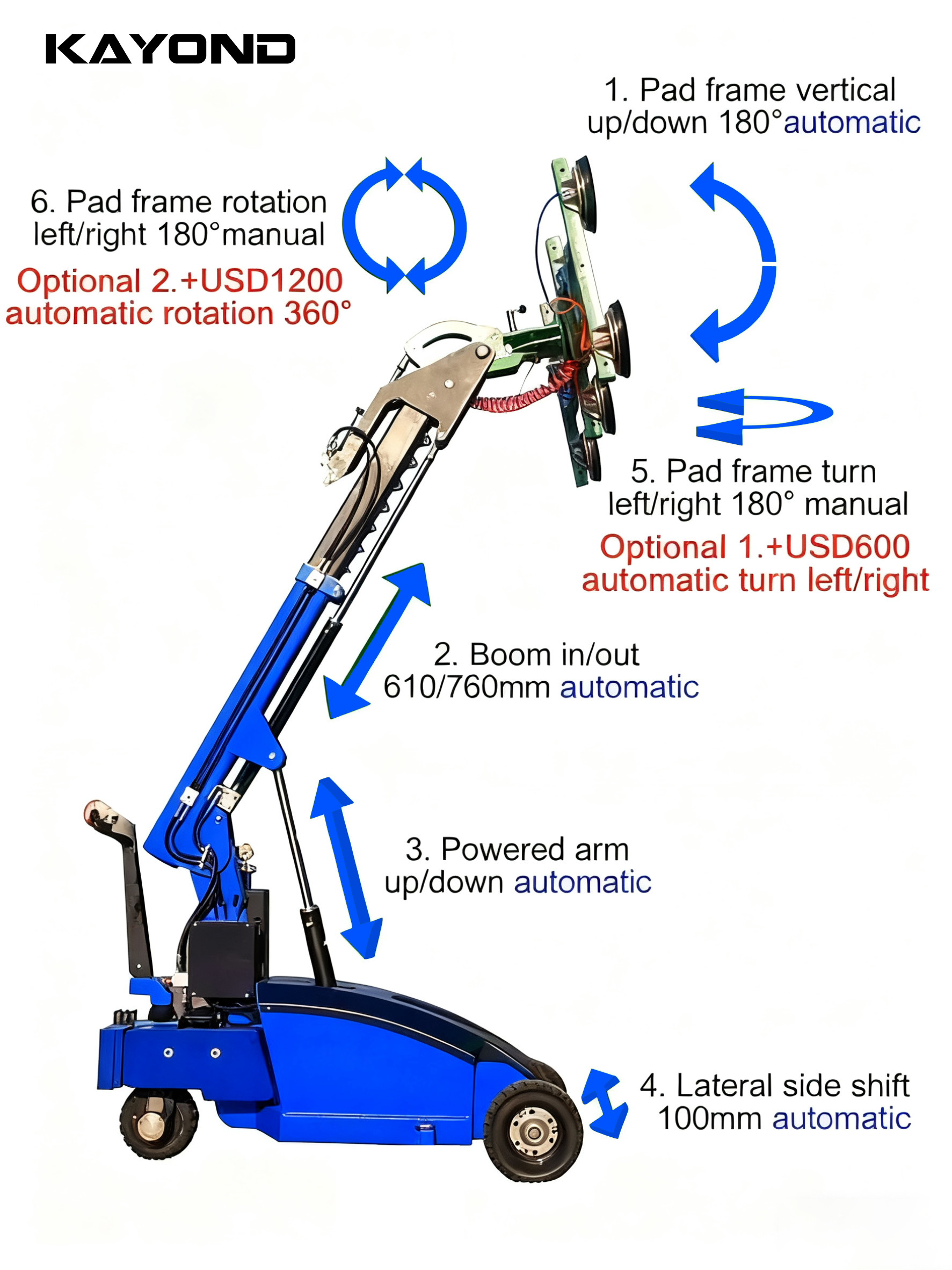

Rotating
|
°
|
Manual 360° (Automatic type for optional)
|
Turn to side
|
°
|
Manual 90° (Automatic type for optional)
|
Lifting Height
|
mm
|
3700 /4500/ 5000
|
Manipulation
|
/
|
Walkie Type
|
Power
|
/
|
Tractive-type Free Maintence Battery
|
Controling type
|
/
|
Stepless adjusting speed
|
Battery
|
V/Ah
|
2*12/120
|
Charger
|
V/A
|
24/18
|
Climbing gradient
|
%
|
15
|
Braking type
|
/
|
Electromagnetic braking
|
Driving Motor
|
V/W
|
24/2200 / 24/2500
|
Lifting Motor
|
V/W
|
24/2200
|
Packing Size
|
mm
|
2780*990*1750 / 3180*1100*1780
|
Packing Weight
|
kg
|
1850 / 2080
|
Front Wheel Size
|
mm
|
Φ466*195 (Pneumatic Tires)
|
Front Wheel Qty
|
pcs
|
2 ( 2+2 Dual wheel optional)
|
Rear Wheel Size
|
mm
|
Solid Φ400*100 ( Pneumatic tires for optional)
|
Rear Wheel Qty
|
pcs
|
2
|
Pads Size
|
mm
|
Φ300
|
Pads Qty
|
pcs
|
6/8
|
