타이조우 카이오드 기계류 주식회사
| 최소 주문 수량: | 1 |
|---|---|
| 가격: | 3065 |
| 모델 번호: | CDD2030 | 로드 용량: | 1-2T |
|---|---|---|---|
| 부하 중심: | 500mm | 리프트 높이: | 3000mm |
| 배터리 용량: | 24v/210Ah | 타이어 유형: | PU는 선회합니다 |
| 회전 반경: | 1738/2099mm | 패키지 크기: | 218x90x213cm |
| 포크 사이즈: | 1220*100*40mm | 지상 허가: | 30mm |
| 구동 속도: | 4 킬로미터 / Ｈ | 구배: | 3' /5' |
| 운전 모터: | 1.2kW | 리프팅 모터: | 2.2kW |
| 전체 크기: | 2170*1570*2100mm | ||
| 강조하다: | Customized Electric Pallet Stacker,DC Motor Pallet Stacker,PU Wheel Balance Forklift |
||

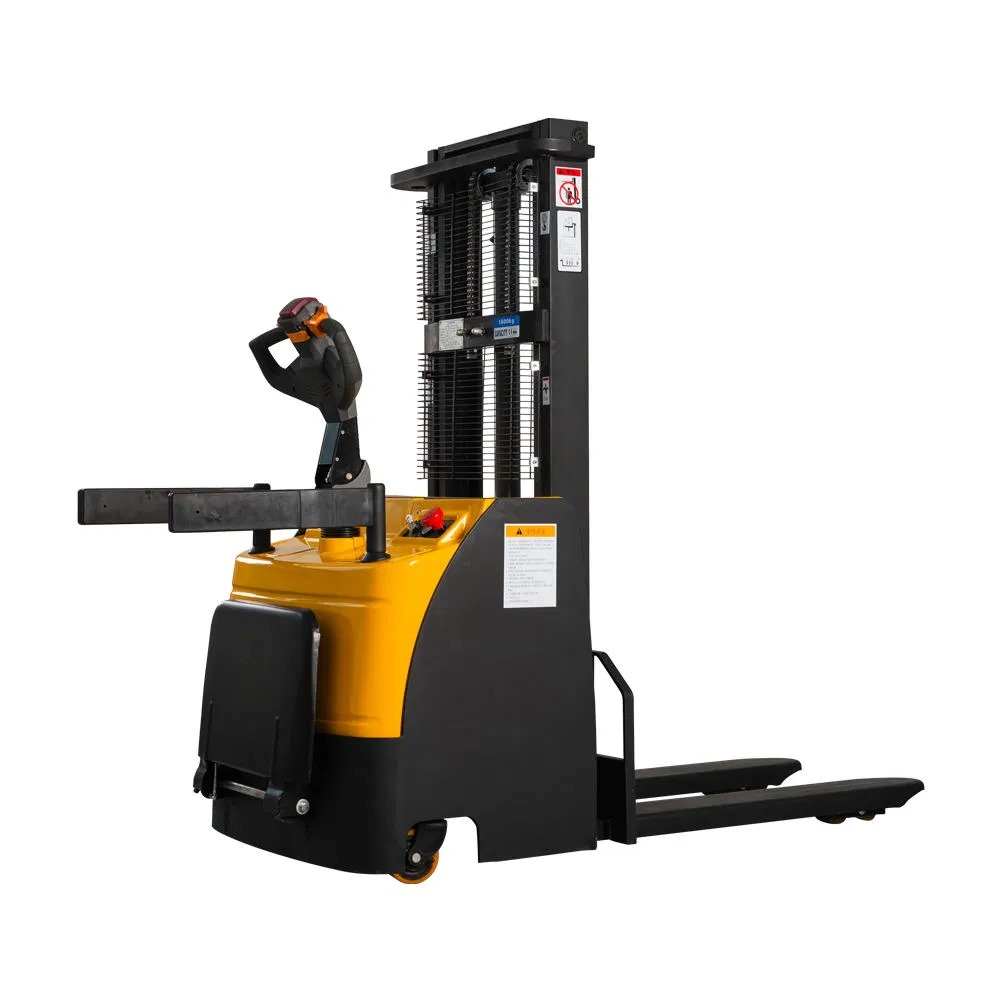

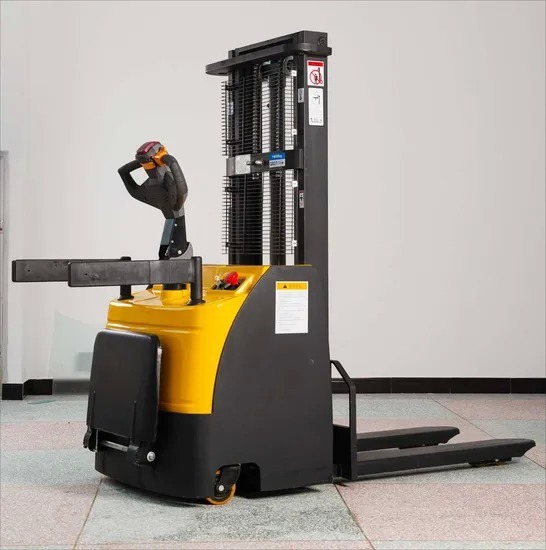

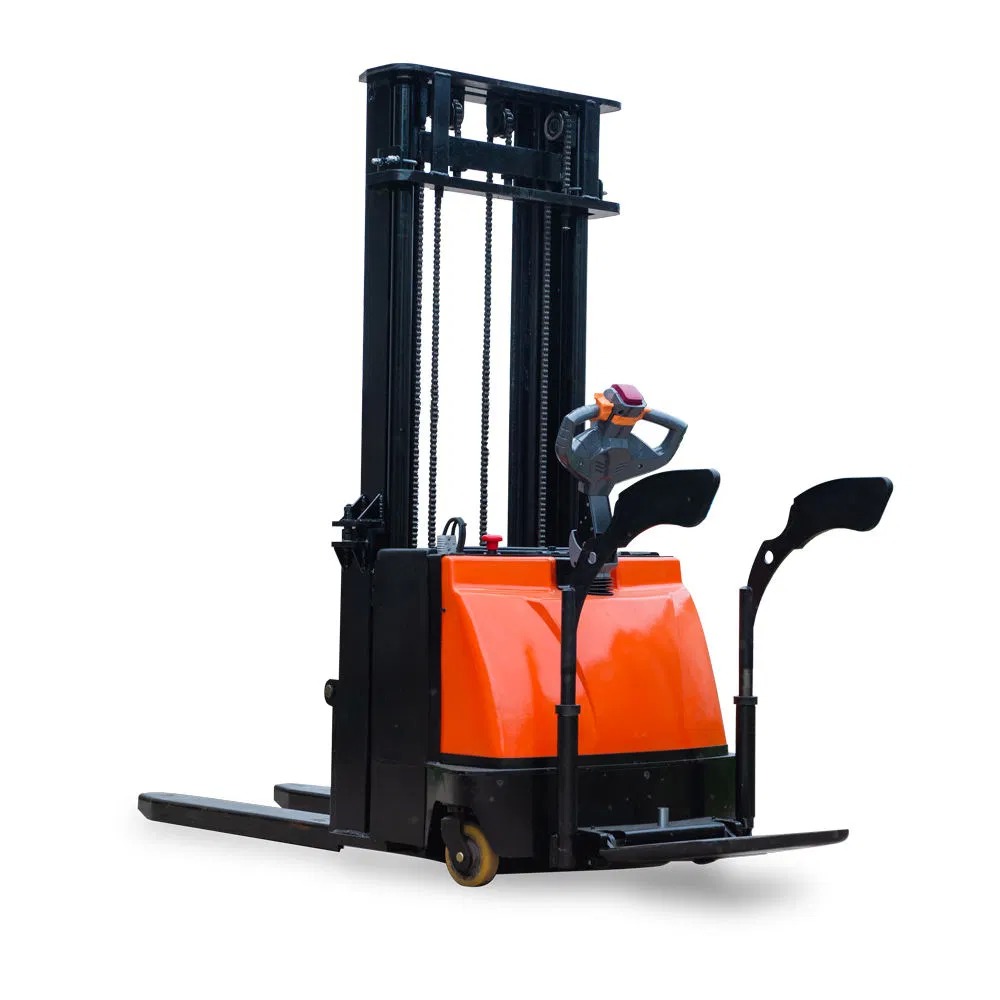

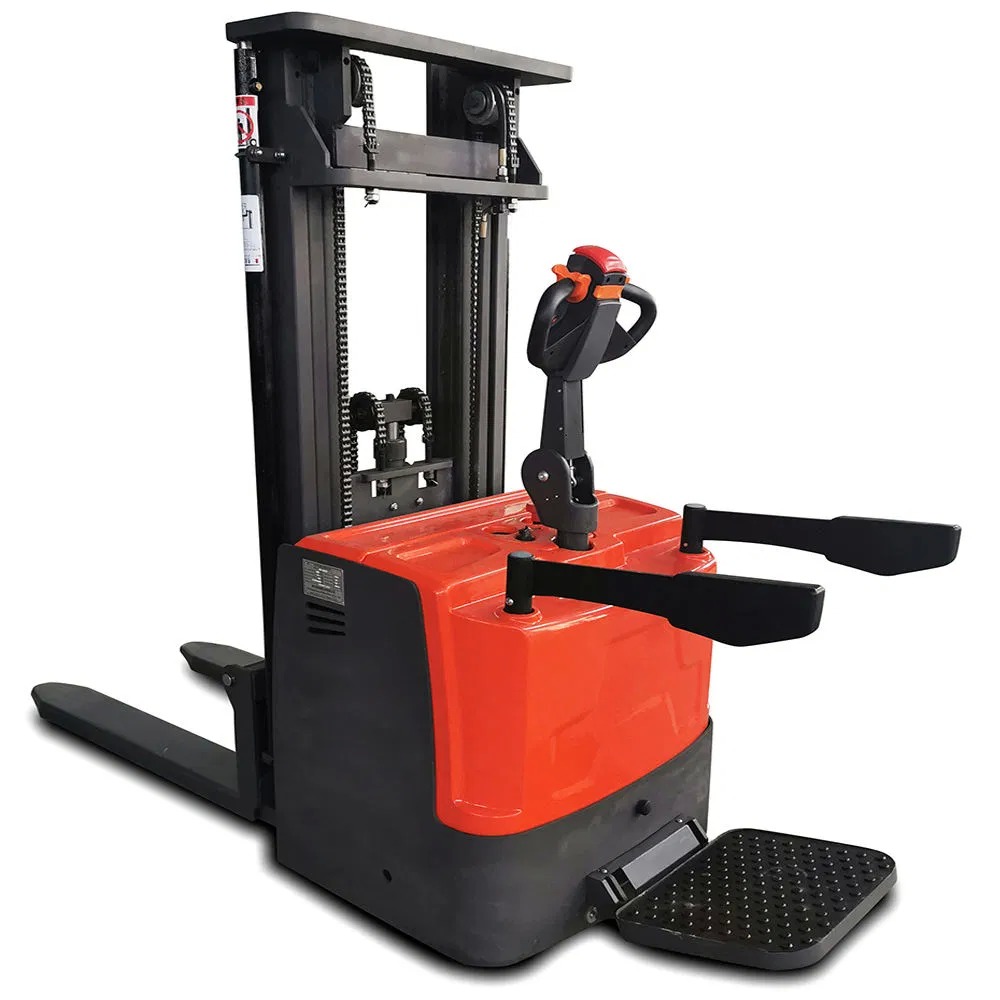

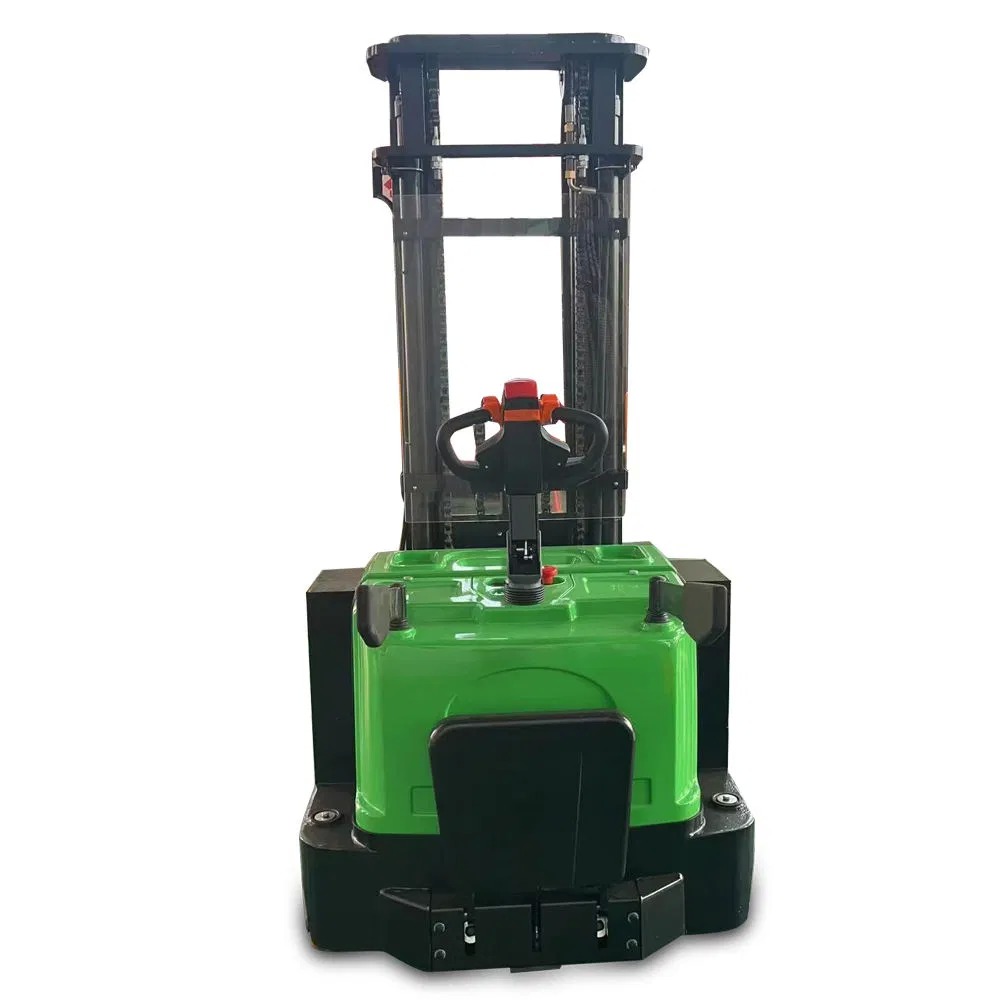

The full electric pallet stacker is designed for efficient loading, stacking, and short-distance palletizing operations. Its simple structure offers flexible operation with excellent micro-control capabilities and high safety performance. Ideal for working in confined spaces, this stacker can access ship cabins, carriages, and containers for palletized goods handling.
| Model | CDD1030 | CDD1530 |
|---|---|---|
| Load Capacity | 1000 kg | 1500 kg |
| Lifting Height | 3000 mm | 3000 mm |
| Load Center | 500 mm | 500 mm |
| Fork Size | 1220×100×40 mm | 1220×100×40 mm |
| Ground Clearance | 30 mm | 30 mm |
| Driving Speed (Full Load) | 4 km/h | 4 km/h |
| Battery | 24V/210A | 24V/210A |
| Overall Dimensions | 2170×1570×2100 mm | 2170×1570×2100 mm |
Brand: KAD - Domestic premium control handle with functional buttons for sensitive UP/DOWN and FORWARD/BACKWARD control.
Combined key, battery indicator, and emergency switch. Functional and aesthetically designed for comfortable operation.
Strong cylinder and chain system ensures smooth fork operation. Available with 1-stage, 2-stage, or 3-stage mast options.
