타이조우 카이오드 기계류 주식회사
| 최소 주문 수량: | 1 |
|---|---|
| 가격: | 1700 |
| 모델 번호: | CDDW1516 | 로드 용량: | 1~1.5t |
|---|---|---|---|
| 부하 중심: | 500mm | 리프트 높이: | 1600mm |
| 총 체중: | 550.000kg | 패키지 크기: | 182x90x163cm |
| 포크 폭: | 550/680mm/사용자 정의 | 돛대: | 2 Stage/3 단계 |
| 포크 길이: | 1070mm/사용자 정의 | 배터리: | 24V/80AH |
| 구동 속도: | 50.0/5.0 MM/S | 리프팅 속도: | 140/135 mm/s |
| 하강 속도: | 150/155 mm/s | 운전 모터: | DC/0.75 kW |
| 리프팅 모터: | DC/2.2 kW | ||
| 강조하다: | 2 Stage Mast Electric Pallet Stacker,3 Stage Mast Walkie Stacker,1070mm Fork Length Electric Forklift |
||

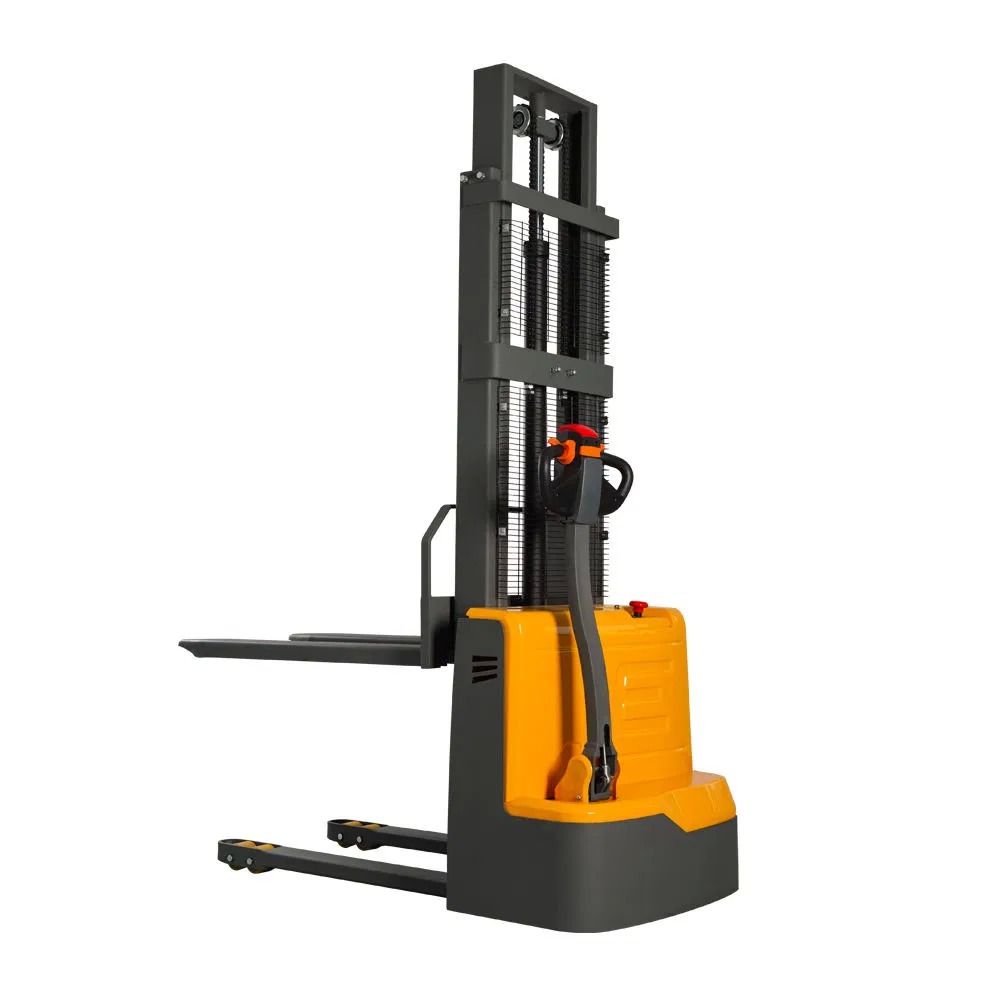

The KAD Electric Pallet Walkie Stacker combines efficiency with safety, designed for optimal performance in warehouse and factory environments. Its intuitive operation requires minimal training, while the compact design ensures excellent maneuverability in confined spaces.
| Model | CDDW10 CDDW15 | ||
|---|---|---|---|
| Drive System | Battery | ||
| Driving Mode | Walkie | ||
| Load Capacity | Q | KG | 1000 |
| Load Center | C | MM | 500 |
| Weight (With battery) | KG 480/495/515/535 | ||
| Wheel Material | PU | ||
| Lifting Height | H3 | MM | 1600/2000/2500/3000/4000 |
| Driving Speed (Empty/Full Load) | MM/S 5.0/5.0 | ||
| Lifting Speed (Empty/Full Load) | MM/S 140/135 | ||
| Driving Motor | DC/0.75 KW | ||
| Lifting Motor | DC/2.2 KW | ||

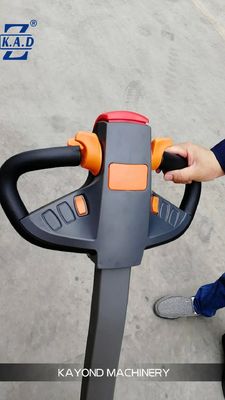

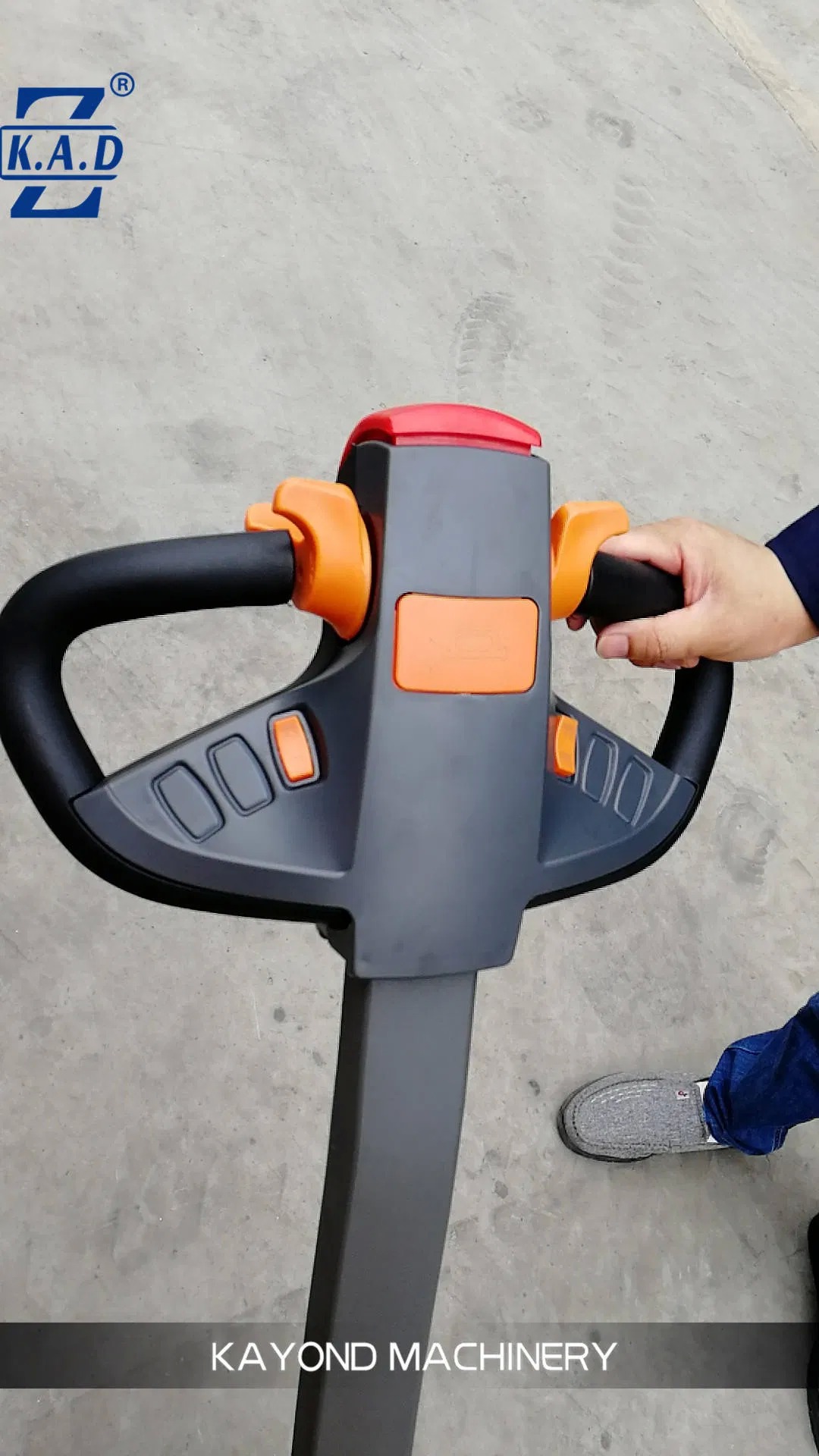

Domestic famous control handle with functional buttons for precise UP/DOWN and FORWARD/BACKWARD control. Features Curtis brand accelerator for safe operation.
Essential for warehouses with insufficient lighting conditions.
Includes reverse rearview mirror and buzzing sound alert system for enhanced safety in busy environments.

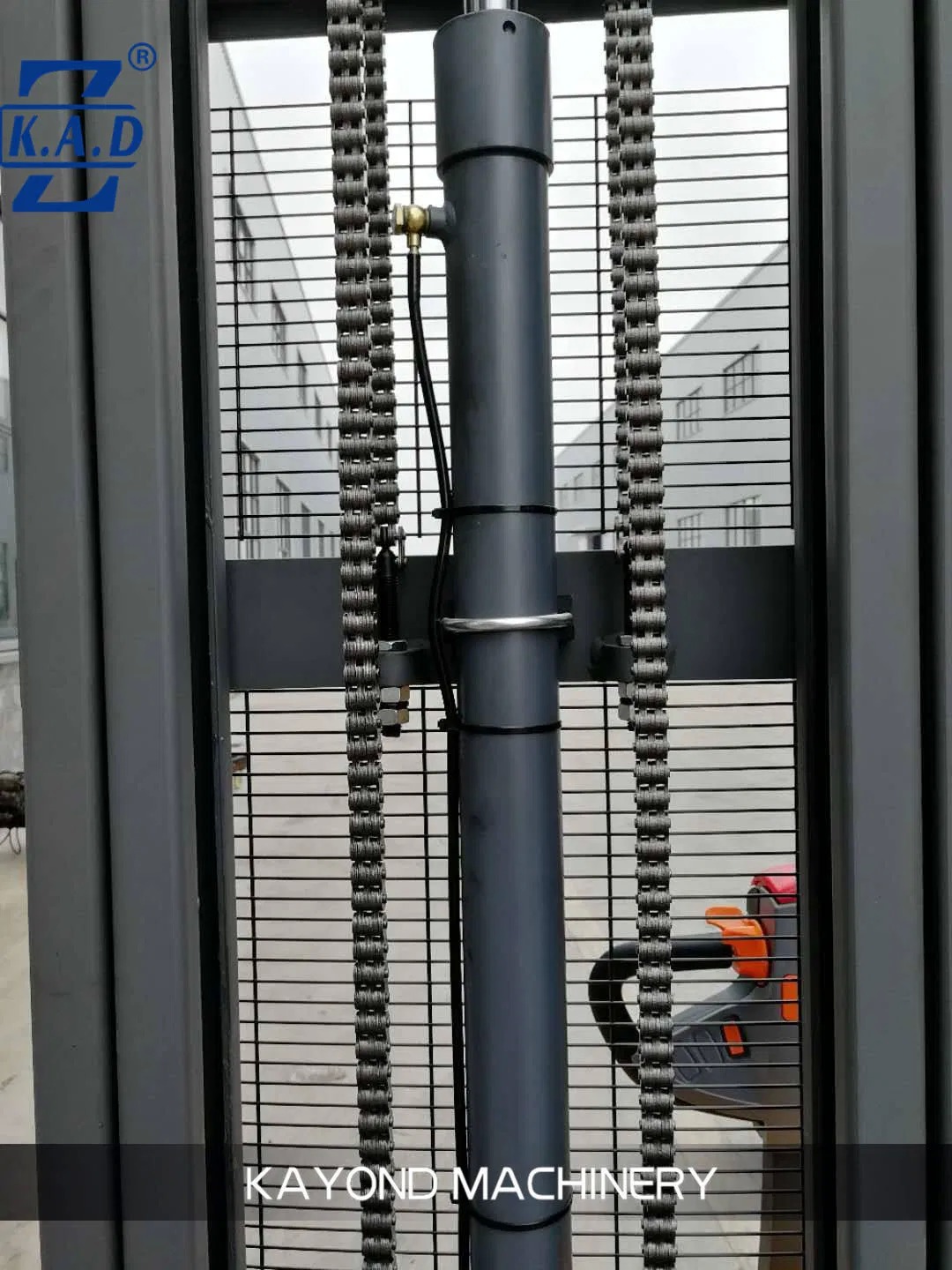

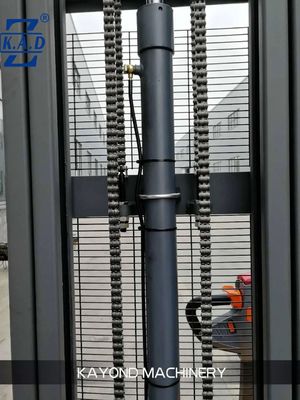

High-strength 3-stage mast capable of supporting heavy loads up to 4-4.5m.
A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated.
A: EXW, FOB, CFR, CIF, DDU.
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
A: Yes, we have 100% test before delivery.
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
