Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations

Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations
Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations
기본 정보
인증: CE
최소 주문 수량: 1
가격: 2130
최고의 가격 지금 연락
모델 번호: CDDW1540 로드 용량: 1~1.5t
부하 중심: 500mm 리프트 높이: 4000mm
전원 유형: DC 전원 정격 하중 용량: 1.5톤
패키지 크기: 182x90x213.cm 구동 속도: 50.0/5.0 MM/S
리프팅 속도: 140/135 mm/s 하강 속도: 150/155 mm/s
맥스 증감: 7/5 ° 운전 모터: DC/0.75 kW
리프팅 모터: DC/2.2 kW 배터리 용량: 24/80/100 V/AH
포크 길이: 1070mm
강조하다:

Adjustable Forks Electric Pallet Stacker

,

1.5 Ton Load Capacity Walkie Stacker

,

DC Motor Electric Forklift

Adjustable Forks 1.5 Ton Load Capacity Electric Pallet Stacker

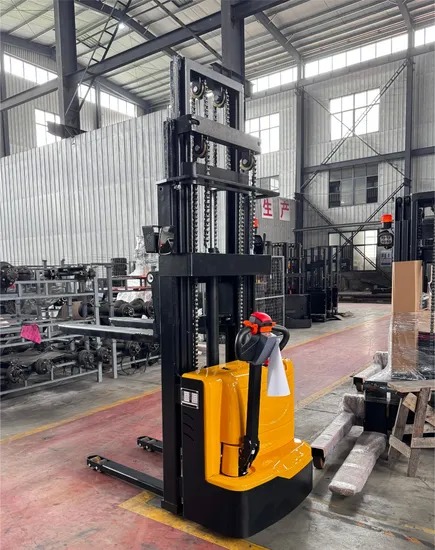

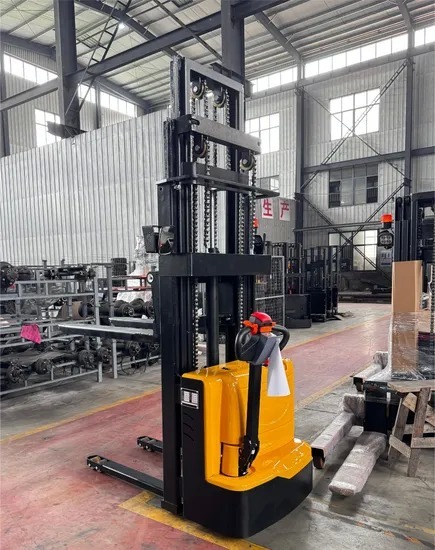

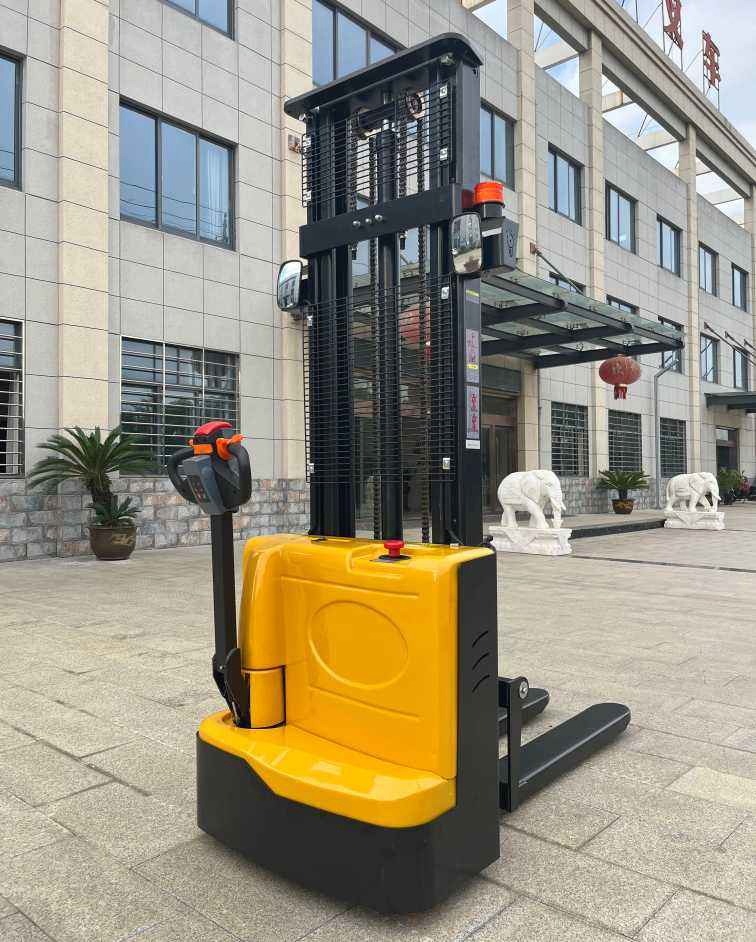

Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations 0
The walkie stacker is designed for easy operation, requiring only basic training to master, making it suitable for various workers. Its compact size and light weight allow for excellent maneuverability in tight spaces, ideal for warehouse and factory environments.
Key safety features include: emergency brakes, speed limiters, and anti-slip functions to ensure operator safety. The walking operation method provides operators with better vehicle control, significantly reducing accident risks.
Product Specifications
MODEL CDDW10 CDDW15
Drive system Battery
Driving mode Walkie
Load Capacity KG 1000
Load Center MM 500
Weight (With battery) KG 480/495/515/535
Wheels Material PU
Lifting Height MM 1600/2000/2500/3000/4000
Lowest Mast MM 2080/1580/1830/2080/1580
Max.Height when operating MM 2080/2730/3230/3730/4750
Min.Height of Fork MM ≤90
Length MM 1770
Width MM 850
Fork Length MM 1070
Wheelbase MM 1250
Fork Outside Width MM 680
Fork Inside Width MM 305
Min.Turning Radius MM 1390
Driving Speed (Empty/Full Load) MM/S 5.0/5.0
Lifting Speed (Empty/Full Load) MM/S 140/135
Descending Speed (Empty/Full Load) MM/S 150/155
Max.Gradient (Empty/Full Load) ° 7/5
Brake Electromagnetic brake
Driving Motor KW DC/0.75
Lifting Motor KW DC/2.2
Battery Capacity V/Ah 24/80/100;Li/gel
Product Features
Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations 1 Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations 2
Control Handle
Brand: KAD
Domestic famous control handle with functional buttons that sensitively control UP/DOWN, FORWARD/BACKWARD movements. Features Curtis brand accelerator for safe operation.
Night Operation Lights
Essential for warehouses with insufficient lighting conditions.
Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations 3 Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations 4
Safety Features
Includes reverse rearview mirror and buzzing sound - safety devices that many competitors omit to reduce costs. We maintain safety standards while offering competitive pricing.
Durable Mast
High-strength 3-stage mast capable of supporting heavy loads at 4-4.5m heights.
Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations 5 Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations 6 Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations 7 Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations 8 Electric Pallet Stacker with Adjustable Forks 1.5 Ton Load Capacity and DC Motor for Efficient Warehouse Operations 9
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
