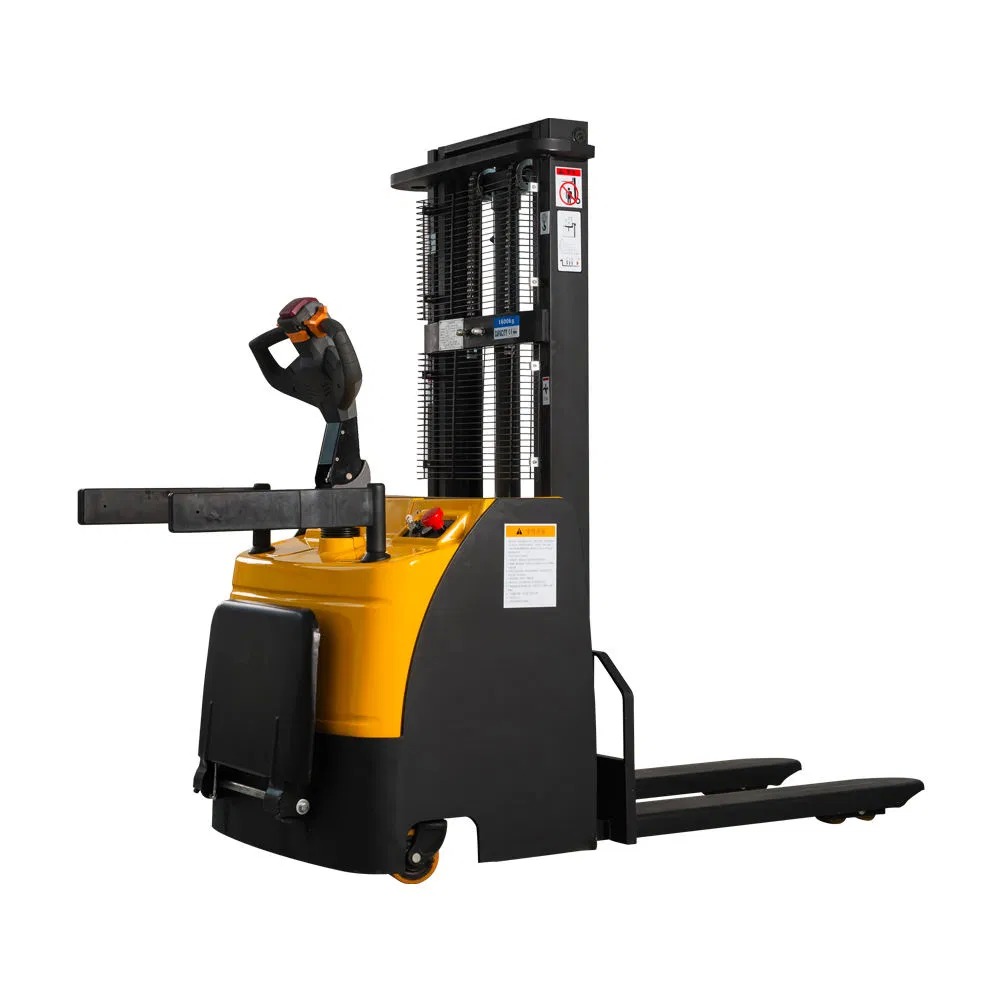

Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius

기본 정보

최소 주문 수량:	1
가격:	2885

최고의 가격 지금 연락

모델 번호:	CDD1516	로드 용량:	1~1.5t
부하 중심:	500mm	리프트 높이:	1600mm
총 체중:	900.000 킬로그램	배터리 용량:	24v/210Ah
포크 폭:	850mm	회전 반경:	1738/2099mm
포크 길이:	1070mm	운전 모터:	1.2kW
리프팅 모터:	2.2kW	타이어 크기:	300/250mm
전체 크기:	217015702100mm	구동 속도:	4 킬로미터 / Ｈ
구배:	3' /5'
강조하다:	500mm Load Center Electric Pallet Stacker , 1070mm Fork Length Full Electric Stacker , 1738/2099mm Turning Radius Electric Forklift

Great Electric Pallet Stacker Balance Battery Forklift DC Drive Motor

Full electric stackers are designed for loading, stacking, and short-distance palletizing of goods. Featuring a simple structure and flexible operation, they offer excellent micro-operability and high safety performance. Ideal for operations in narrow passages and limited spaces, these stackers can efficiently work in ship cabins, carriages, and containers for pallet goods handling.

Product Specifications

Model	CDD1030	CDD1530
Load Capacity	1000 kg	1500 kg
Lifting Height	3000 mm	3000 mm
Load Center	500 mm	500 mm
Fork Size	1220×100×40 mm	1220×100×40 mm
Ground Clearance	30 mm	30 mm
Driving Speed with Full Loads	4 km/h	4 km/h
Battery	24V/210A	24V/210A
Driving Motor	1.2 KW	1.2 KW
Lifting Motor	2.2 KW	2.2 KW
Overall Size	2170×1570×2100 mm	2170×1570×2100 mm
Weight	900 kg	900 kg

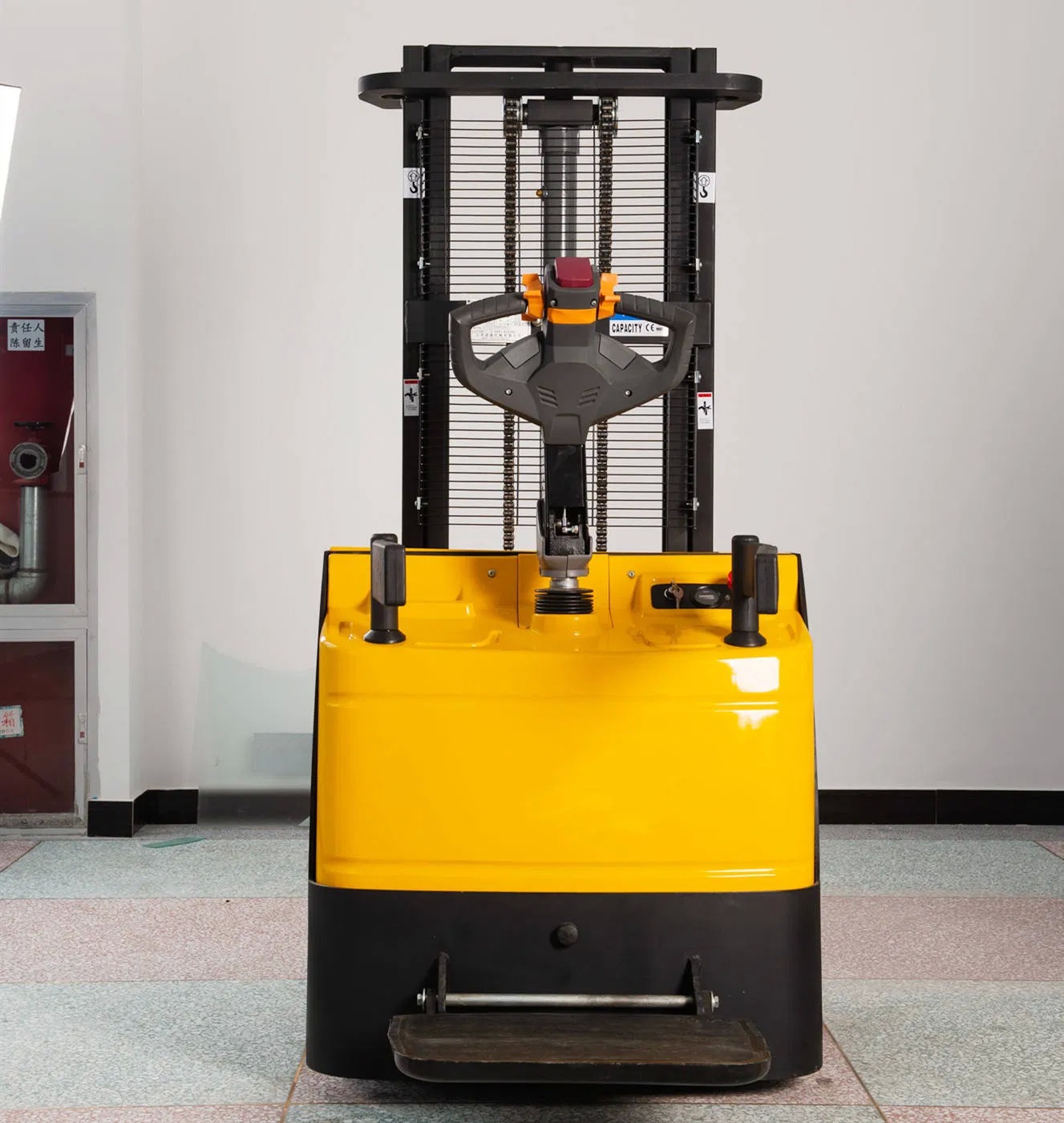

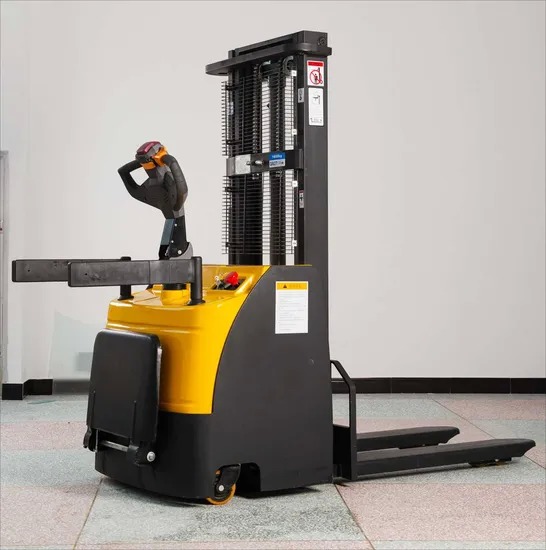

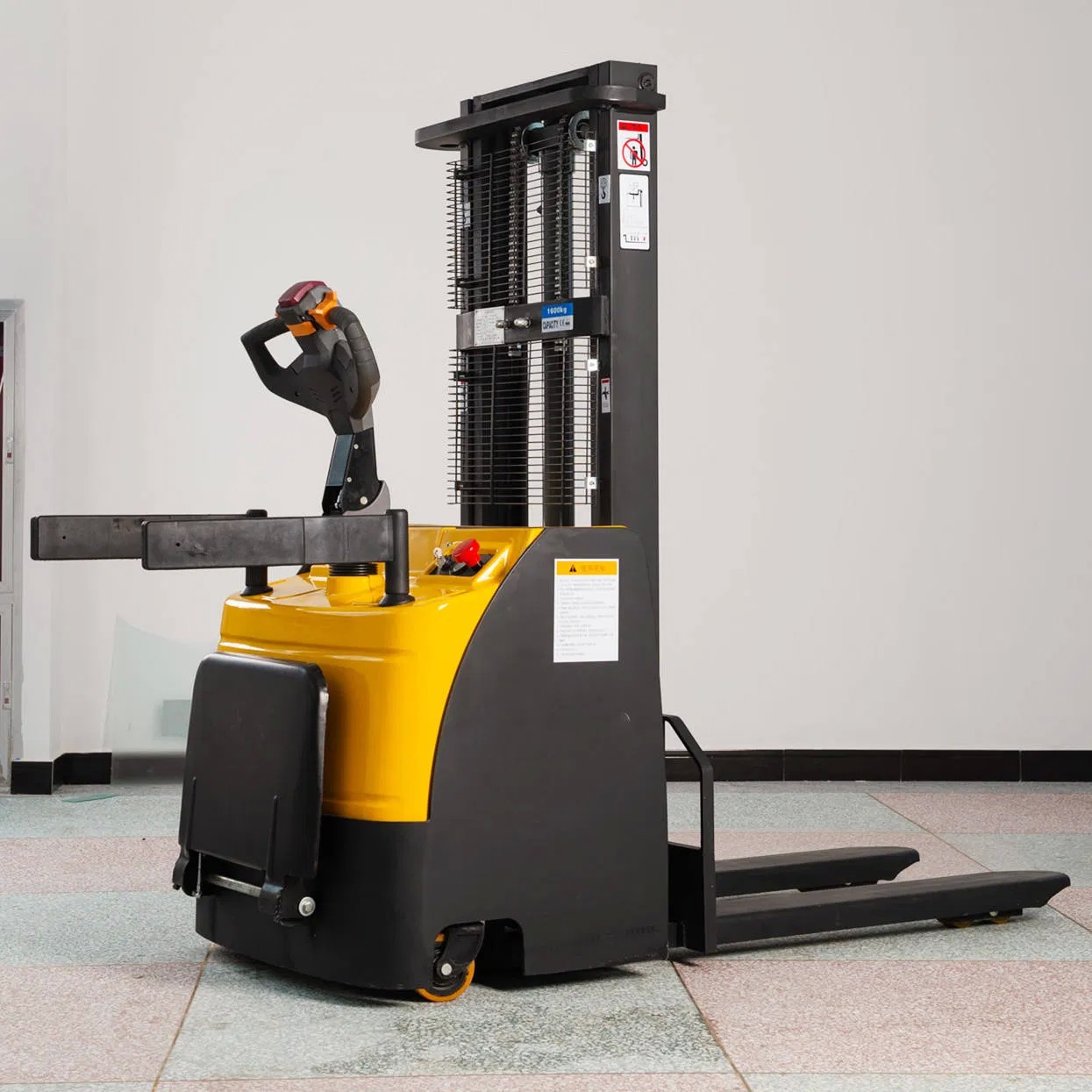

Detailed Photos

Machine Components

Control Handle: KAD brand domestic famous control handle with functional buttons for sensitive UP/DOWN, FORWARD/BACKWARD control.

Operation Panel: Features key, battery indicator, and emergency switch. The functional panel with beautiful design enhances work efficiency and ease.

Mast System: Strong cylinder and chain ensure smooth fork operation. Available in 1-stage, 2-stage, or 3-stage mast configurations.

Key Features

Side-positioned drive system and strong caster provide exceptional stability and easy maneuverability.

Frequently Asked Questions

Q1. What is your terms of packing?

A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or as negotiated.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q6. How do you make our business long-term and good relationship?

A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
