타이조우 카이오드 기계류 주식회사
| Place of Origin: | Jiangsu, China, CN;JIA |
|---|---|
| 브랜드 이름: | KAD |
| Minimum Order Quantity: | 10 |
| 가격: | $500 |
| Fork Length: | 1070mm | Fork Width: | 550/680mm |
|---|---|---|---|
| Drive Type: | FWD | Load Center: | 500mm |
| Turning Radius: | 1738/2099mm | Load Weight: | 1500KG |
| Load Height: | 3500mm | Battery Capacity: | 24V/210Ah |
| Weight: | 850KG | Power Source: | DC MOTOR |
| Load Capacity: | 1.5 ton | Tire Type: | PU Wheel |
| Driving Speed: | 4 km/h | Gradient: | 10° |
| Overall Size: | 2170*1570*2100mm | ||
| 강조하다: | 1500KG electric pallet stacker,electric pallet stacker 3500mm lift,heavy-duty electric pallet stacker |
||

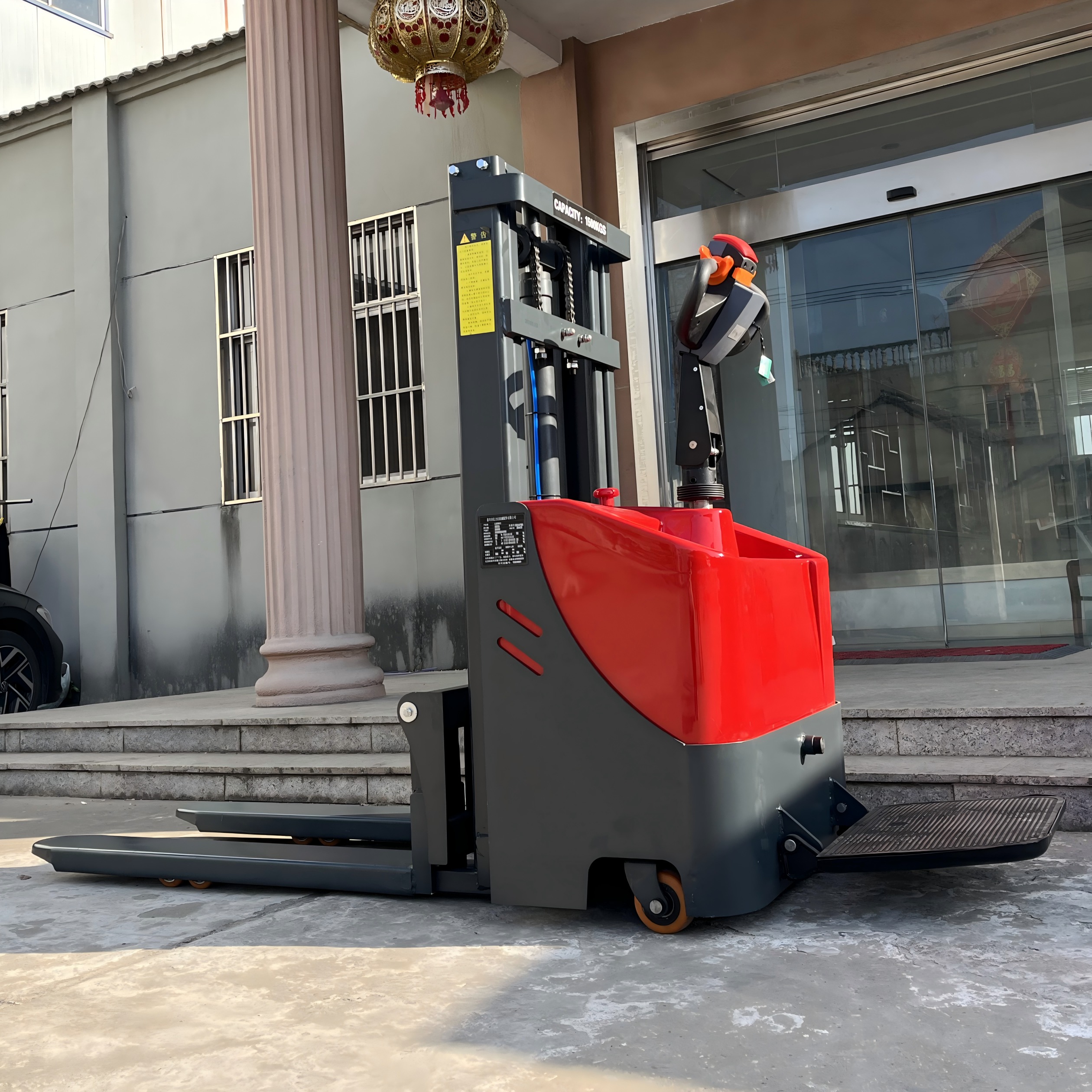

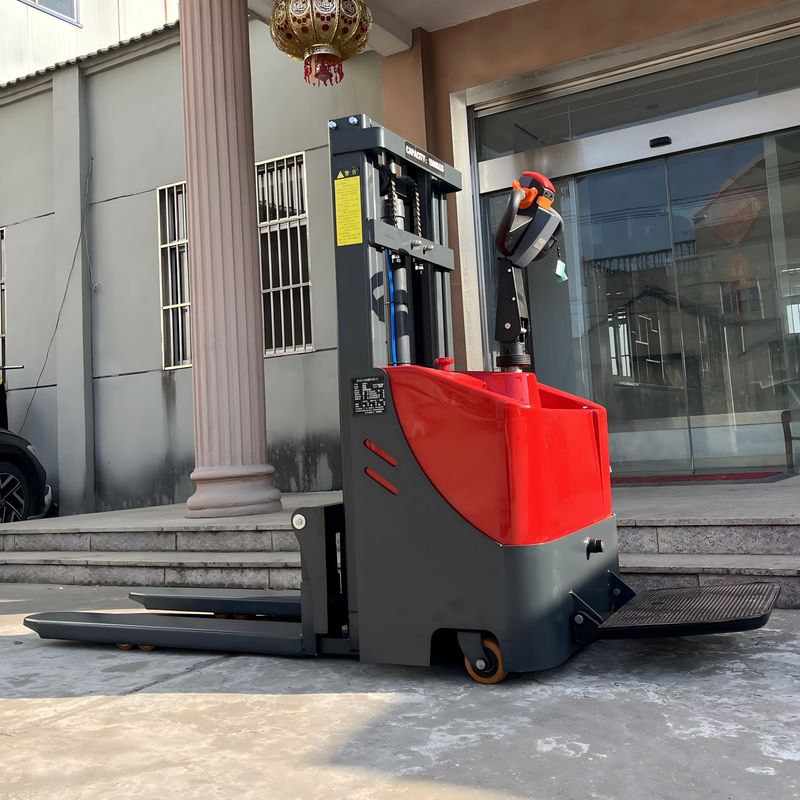

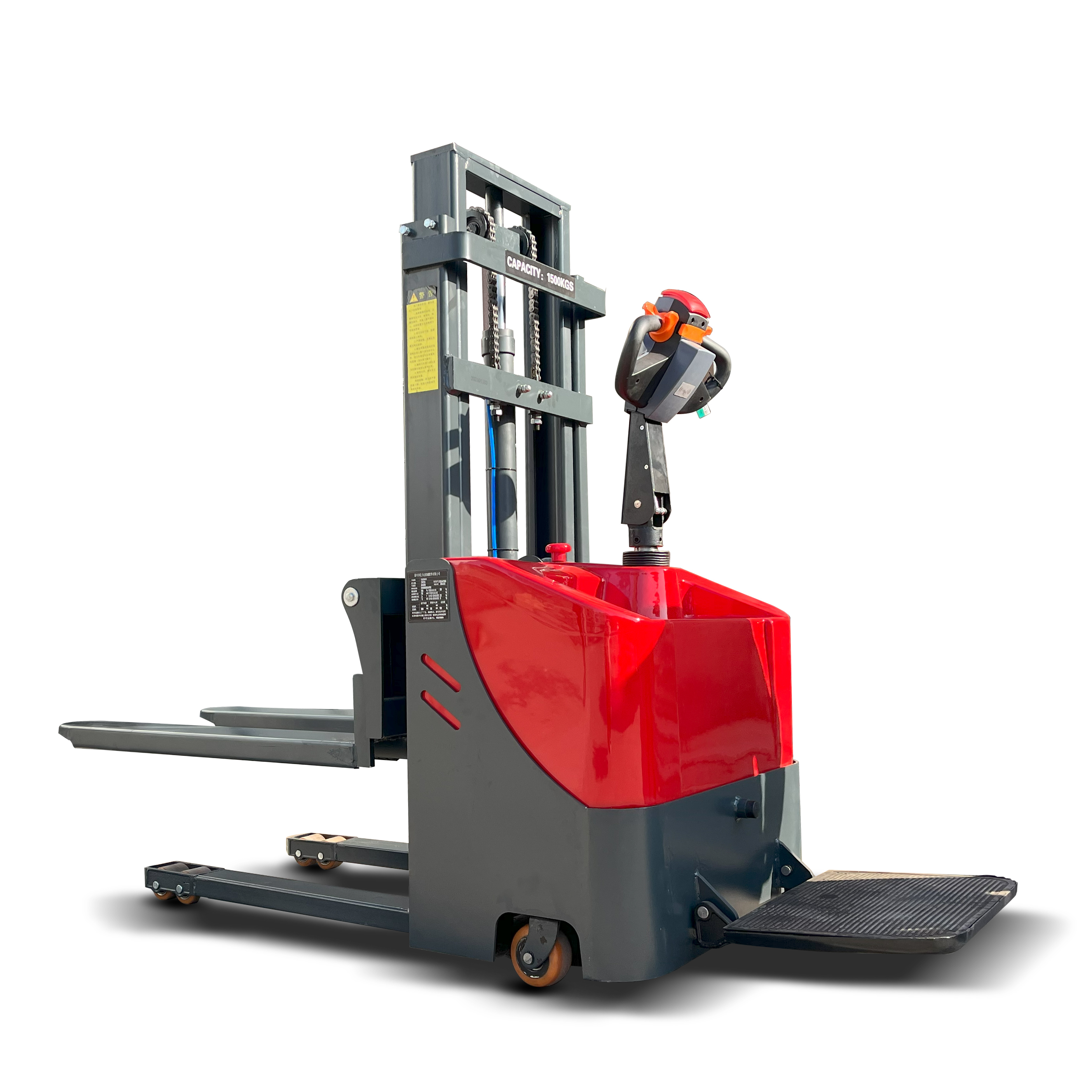

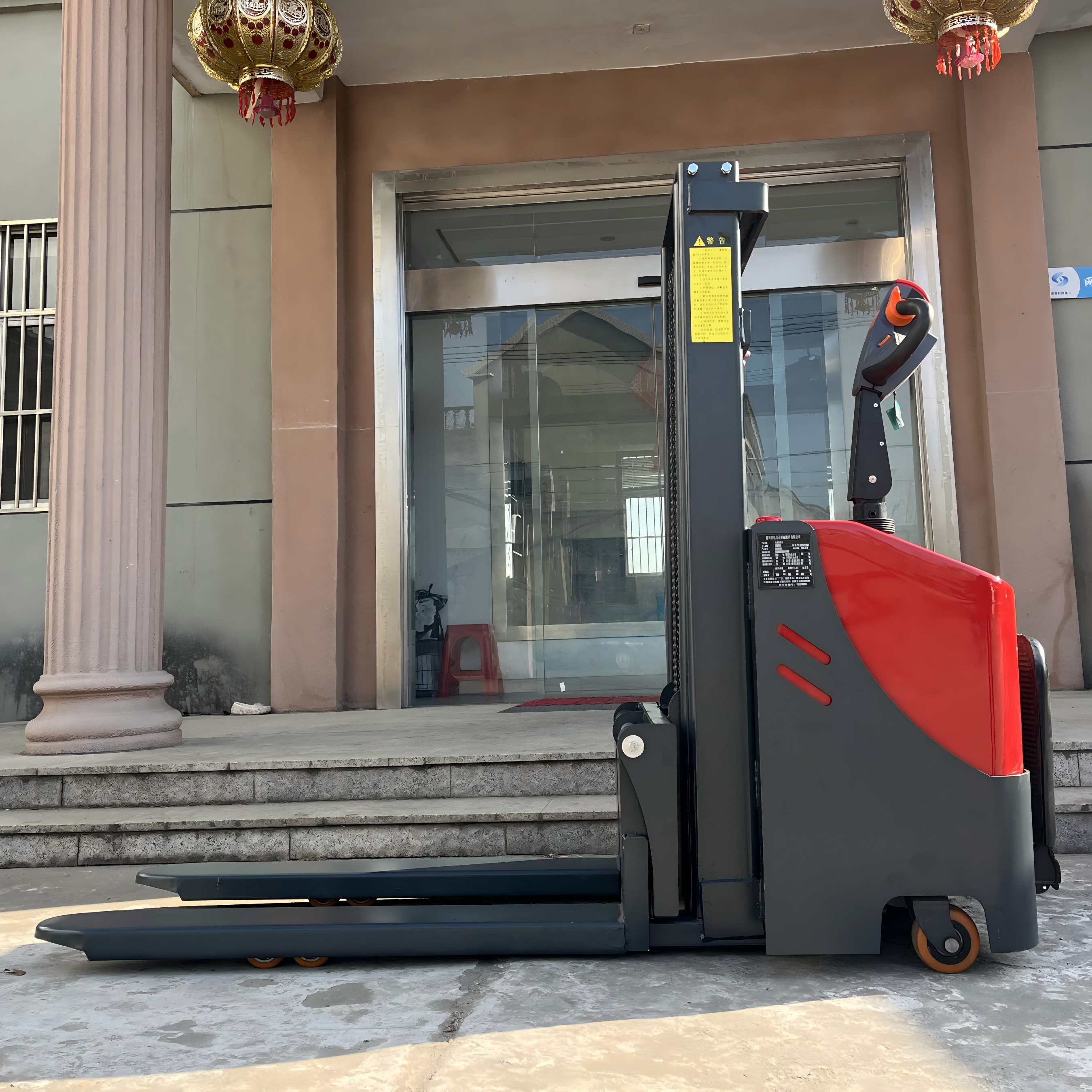

Full electric stackers are designed for loading, stacking, and short-distance palletizing of goods. Featuring a simple structure with flexible operation and excellent micro-control capabilities, these stackers offer high safety performance. Ideal for operations in narrow passages and confined spaces, they can efficiently work in ship cabins, carriages, and containers for palletized goods handling.
| Attribute | Value |
|---|---|
| Condition | New |
| Fork Length | 1070mm |
| Fork Width | 550/680mm |
| Drive Type | FWD |
| Load Capacity | 1.5 ton (1500KG) |
| Load Height | 3500mm |
| Turning Radius | 1738/2099mm |
| Battery Capacity | 24V/210Ah |
| Warranty | 1 Year |
| Model | CDD1030 | CDD1530 |
|---|---|---|
| Load Capacity (kg) | 1000 | 1500 |
| Lifting Height (mm) | 1600 | 1600 |
| Driving Speed with Full Loads (km/h) | 4 | 4 |
| Battery (V/Ah) | 24V/80A | 24V/80A |
| Overall Size (mm) | 2170*1570*2100 | 2170*1570*2100 |
Control Handle: Premium quality control handle with sensitive operation for precise up/down and forward/backward movement.

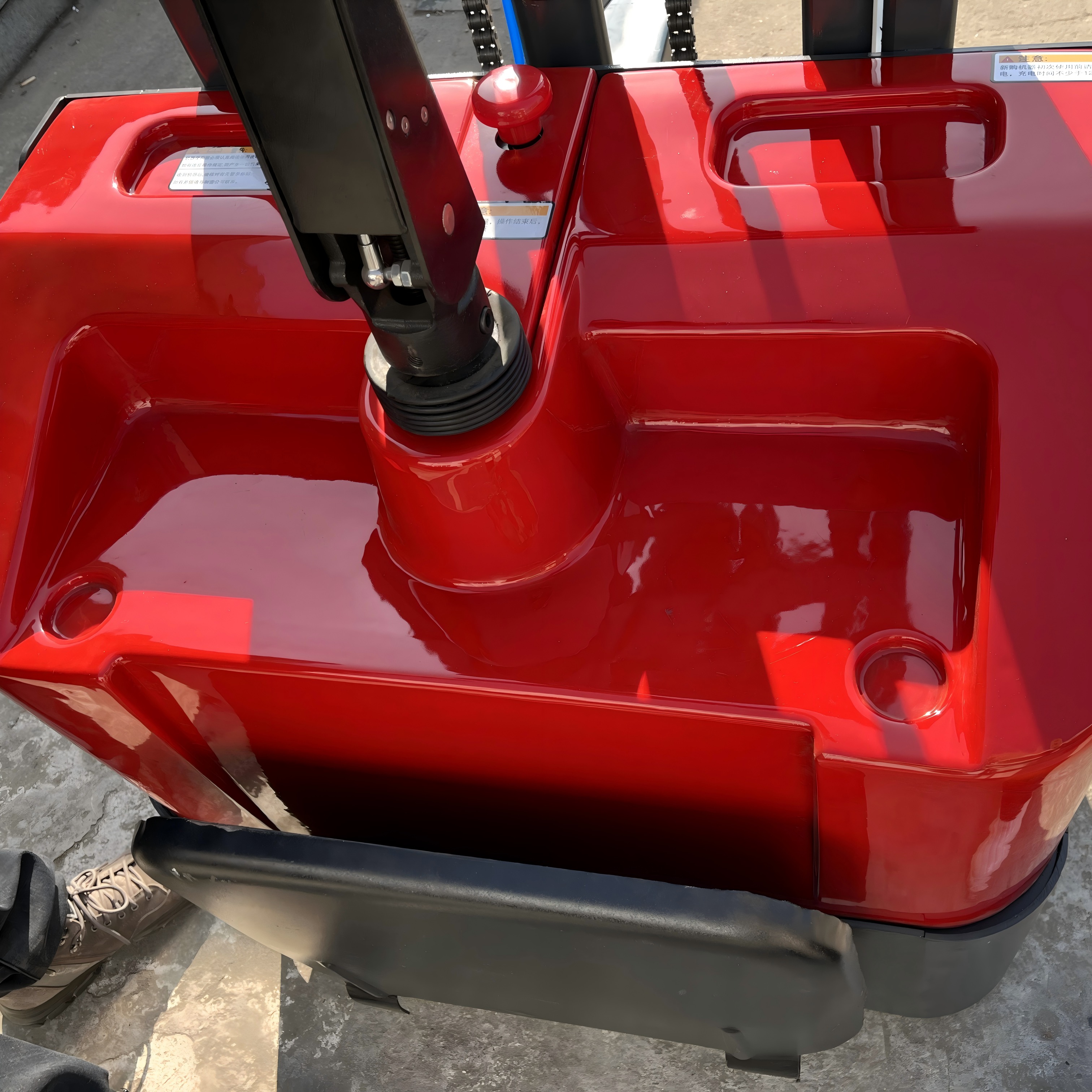

Operation Panel: Integrated design with key switch, battery indicator, and emergency switch for intuitive operation.

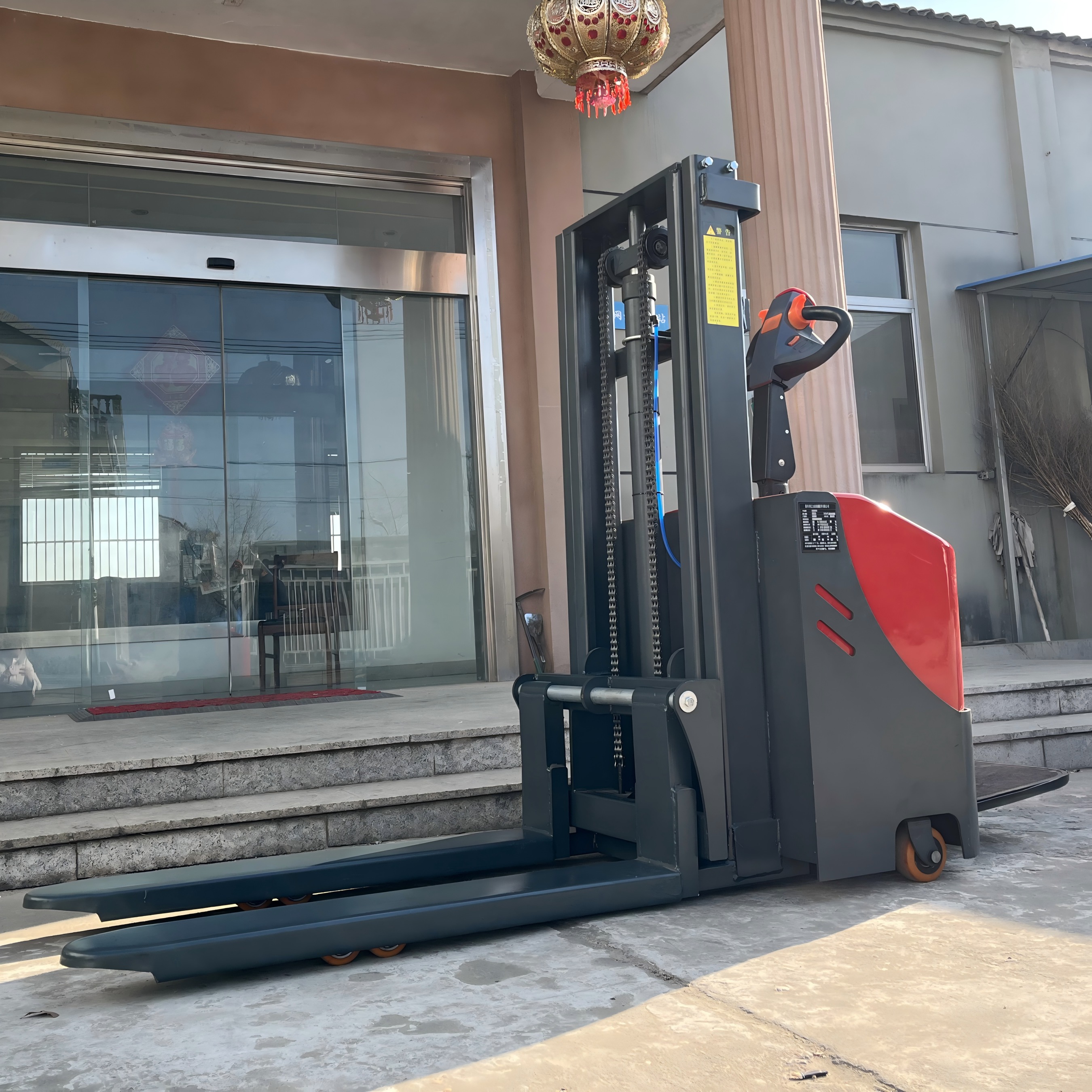

Mast Options: Available in 1-stage, 2-stage, or 3-stage configurations with strong cylinders and chains for smooth operation.
A: Standard packaging includes paper wrapping and iron pallet. Custom branded packaging available with authorization.
A: Standard terms are 30% deposit with 70% balance before delivery, with product photos provided for verification.
A: Typically 5-30 days after deposit receipt, depending on order specifications and quantity.
